Vehicle Exploded View - APRILIA SCARABEO 4T 50 4V 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

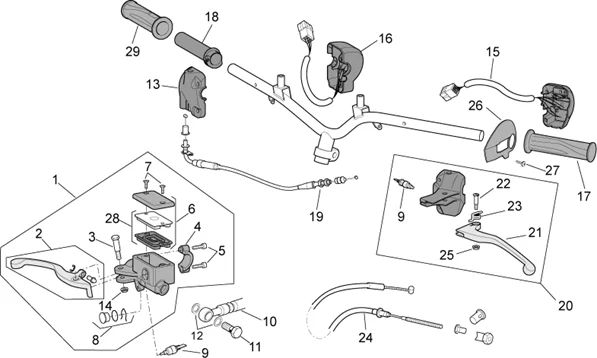

Chassis : 28.14 COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/593/Scarabeo_50_4T_4V_2014_28.14.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/9/1/img/72991.jpg)
1 |
FRONT BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S 2006>/APRILIA 50 SCARABEO 2010> -CM074904- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/1/1/img/66911.jpg)
2 |
RIGHT BRAKE LEVER - "PIAGGIO GENUINE PART" 50-125 FLY, VESPA LX, PRIMAVERA, 125-250-300 VESPA GTS, 50 NRG POWER, LIBERTY/GILERA 125 RUNNER -497042- More informationQuantity required : 1 |
||||||
3 |
AP8213584 - VITE FISSAGGIO LEVA More informationQuantity required : 1 |
||||||
|
4 |
AP8213586 - CAVALLOTTO LEVA FRENO More informationQuantity required : 1 |
||||||
|
5 |
AP8213582 - VITE CAPPELLOTTO More informationQuantity required : 2 |
||||||
|
6 |
AP8213587 - COPERCHIO POMPA More informationQuantity required : 1 |
||||||
|
7 |
AP8213583 - VITE COPERCHIO POMPA More informationQuantity required : 2 |
||||||
|
8 |
AP8113414 - HUBLOT POMPE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
9 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" 125-500 MP3, X10, X-EVO, BEVERLY, GAMME VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO -642032- More informationQuantity required : 2 |
||||||
|
10 |
666705 - TUBE FREIN AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/0/img/66050.jpg)
11 |
SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
12 |
COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927- More informationQuantity required : 2 |
||||||
|
13 |
AP8118569 - COUVERCLE DEVIATEUR FEUX D; More informationQuantity required : 1 |
||||||
|
14 |
AP8213585 - DADO More informationQuantity required : 1 |
||||||
|
15 |
852239 - CABLE HARNESS More informationQuantity required : 1 |
||||||
|
16 |
852240 - CABLE HARNESS More informationQuantity required : 1 |
||||||
|
17 |
896564 - COUPLE MANETTES More informationQuantity required : 1 |
||||||
|
18 |
AP8218214 - TUYAU GAZ SANS MANETTE; More informationQuantity required : 1 |
||||||
|
19 |
2B000822 - TRANSM. COMMANDE GAZ More informationQuantity required : 1 |
||||||
|
20 |
AP8118568 - LEVIER FREIN ARRIERE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/7/0/8/img/56708.jpg)
21 |
LEFT BRAKE LEVER - "PIAGGIO GENUINE PART" APRILIA 50 SCARABEO 2002> -AP8218570- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/8/7/img/72587.jpg)
22 |
SCREW - FOR LEFT LEVER FASTENING "PIAGGIO GENUINE PART" 50 SR, MOJITO, RALLY, GULLIVER, RX, SX -AP8700760- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/2/img/65772.jpg)
23 |
CLUTCH LEVER SPRING "PIAGGIO GENUINE PART" 50 GILERA SMT, RCR -177072- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/2/8/4/img/38284.jpg)
24 |
58628R - TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/0/img/71360.jpg)
25 |
AP8118490 - ECROU More informationQuantity required : 1 |
||||||
|
26 |
AP8258245 - CHAPE LAT. T?TE G; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
27 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 1 |
||||||
|
28 |
AP8213588 - KIT REVISIONE POMPA More informationQuantity required : 1 |
||||||
|
29 |
896564 - COUPLE MANETTES More informationQuantity required : 1 |
