Vehicle Exploded View - APRILIA SCARABEO LIGHT 250 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

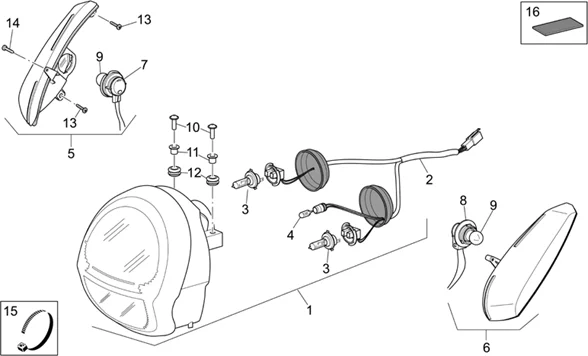

Chassis : 28.27 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/606/Scarabeo_250_Light_E3_2006-2008_28.27.PNG)
1 |
AP8127714 - FANALE ANTERIORE CROMATO More informationQuantity required : 1 |
||||||
|
2 |
AP8127873 - CABLE PROIECTEUR AV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
4 |
LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/2/8/6/img/48286.jpg)
5 |
FLASHER-FRONT-RIGHT "PIAGGIO GENUINE PART"+C2415:C2454 APRILIA 250-300-400-500 SCARABEO 2006>2010 -AP8127716- More informationQuantity required : 1 |
||||||
|
6 |
FLASHER-FRONT-LEFT "PIAGGIO GENUINE PART" APRILIA 250-300-400-500 SCARABEO 2006>2010 -AP8127717- More informationQuantity required : 1 |
||||||
|
7 |
AP8127874 - PORTE-AMPOULE DROIT More informationQuantity required : 1 |
||||||
|
8 |
AP8127875 - PORTE-AMPOULE More informationQuantity required : 1 |
||||||
|
9 |
AP8127489 - LAMPE RY10W 12V More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
10 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/5/img/71485.jpg)
11 |
AP8121795 - DOUILLE EN T More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
12 |
AP8112600 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
13 |
AP8150359 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/5/6/img/50856.jpg)
14 |
SCREW - FOR FUEL TANK MOUNTING "PIAGGIO GENUINE PART" APRILIA RS 50-125 1999>2010/SCREW FOR SPIDER PLATE- APRILIA SL 1000 FALCO 2000>2003, TUONO 1000 2002>2005 -AP8150314- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/5/img/71395.JPG)
15 |
AP8120422 - COLLIER, NOIR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/1/4/img/46214.jpg)
16 |
AP8117033 - ADHESIVE SPONGE More informationQuantity required : 4 |
