Vehicle Exploded View - APRILIA SCARABEO LIGHT 250 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

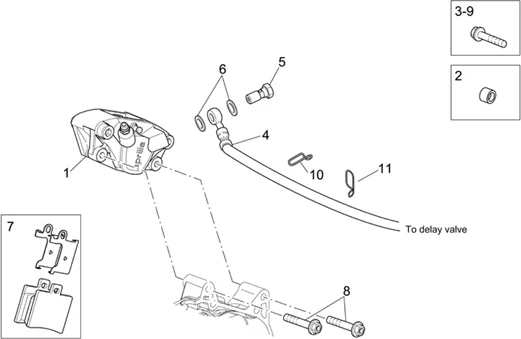

Chassis : 28.26 PINCE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/606/Scarabeo_250_Light_E3_2006-2008_28.26.PNG)
1 |
REAR BRAKE CALIPER "PIAGGIO GENUINE PART" APRILIA 125 SCARABEO -AP8133626- More informationQuantity required : 1 |
||||||
|
1 |
AP8133852 - PINZA FRENO POST.D.30 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/0/img/71430.JPG)
2 |
AP8121041 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
3 |
AP8152280 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
4 |
852344 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
5 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
6 |
AP8113004 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/2/9/img/71329.jpg)
7 |
REAR BRAKE PADS - "PIAGGIO GENUINE PART" APRILIA 125-250 ATLANTIC, SPORT-CITY, SCARABEO, 125 LEONARDO, SPORT CITY-STREET -AP8113869- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/2/1/img/72221.jpg)
7 |
REAR BRAKE PADS-"PIAGGIO GENUINE PART" APRILIA 125-300 ATLANTIC 2010> (PAIR) -AP8213577- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
8 |
AP8152289 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
9 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 1 |
||||||
|
10 |
AP8121856 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
11 |
AP8121889 - GUIDE-CABLE More informationQuantity required : 1 |
