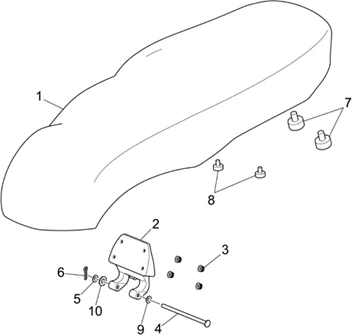

Chassis : 28.13 GROUPE SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/606/Scarabeo_250_Light_E3_2006-2008_28.13.PNG)
1 |
AP8129496 - SELLE More informationQuantity required : 1 |
||||||
|
1 |
AP8129498 - SELLE More informationQuantity required : 1 |
||||||
|
1 |
AP8129502 - SELLE BRUN More informationQuantity required : 1 |
||||||
|
1 |
AP8268909 - SELLE More informationQuantity required : 1 |
||||||
|
2 |
AP8179124 - CERNIERA SELLA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
3 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/4/4/img/57044.jpg)
4 |
AP8221290 - AXE DE BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/6/img/71406.JPG)
5 |
AP8120592 - RONDELLE More informationQuantity required : 1 |
||||||
|
6 |
AP8201431 - GOUPILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/9/img/71749.jpg)
7 |
AP8144089 - CAOUTCHOUC AVANT SELLE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/7/img/71747.JPG)
8 |
AP8144087 - CAOUTCHOUC AVANT LATERAL; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
9 |
AP8150017 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
10 |
SPRING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150376- More informationQuantity required : 1 |
