Vehicle Exploded View - APRILIA SCARABEO LIGHT 250 E3 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

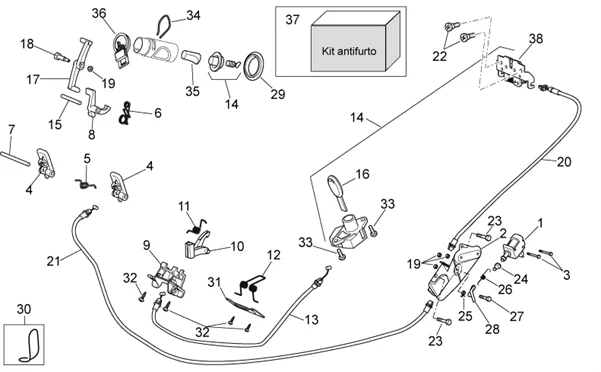

Chassis : 28.31 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/606/Scarabeo_250_Light_E3_2006-2008_28.31.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/0/7/0/img/178070.JPG)
1 |
1D002276R - SADDLE ACTUATOR More informationQuantity required : 1 |
||||||
|
1 |
1D002276R - SADDLE ACTUATOR More informationQuantity required : 1 |
||||||
2 |
577130 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/3/img/67293.JPG)
3 |
584121 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/7/img/67167.jpg)
4 |
577861 - LEVIER More informationQuantity required : 2 |
||||||
|
5 |
575610 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/0/0/4/img/140004.jpg)
6 |
GLOVE BOX LOCK SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -1B003658- More informationQuantity required : 1 |
||||||
|
7 |
575062 - AXE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/9/img/67119.jpg)
8 |
HOOK - FOR FRONT GLOVE BOX "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER -575607- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/2/7/img/67627.jpg)
9 |
620491 - SUPPORT CROCHET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/5/img/67135.jpg)
10 |
FUEL TRAPDOOR HOOK "PIAGGIO GENUINE PART" BEVERLY, MP3 , X10 , X7, X8, X9, X-EVO -576626- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/7/img/67117.JPG)
11 |
SPRING FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" BEVERLY, MP3, X8, X9, X10, X-EVO -575604- More informationQuantity required : 1 |
||||||
|
12 |
851532 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/0/3/img/46203.jpg)
13 |
FUEL TRAPDOOR OPENING CABLE "PIAGGIO GENUINE PART" APRILIA 250-300-400-500 SCARABEO -AP8114492- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/4/9/2/img/55492.JPG)
14 |
AP8202455 - KIT CHIAVI More informationQuantity required : 1 |
||||||
|
15 |
AP8161204 - PERNO More informationQuantity required : 1 |
||||||
|
16 |
AP8104598 - "CLE ""SCARABEO"" SANS TRANSPO." More informationQuantity required : 1 |
||||||
|
16 |
KEYBLANK "PIAGGIO GENUINE PART" FOR APRILIA 250-400 SCARABEO - WITHOUT TRANSPONDER -AP8202409- More informationQuantity required : 1 |
||||||
|
17 |
AP8202456 - LEVA SERRATURA More informationQuantity required : 1 |
||||||
|
18 |
AP8202457 - PERNO LEVA SERRATURA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
19 |
AP8150204 - ECROU AUTOFR. BAS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/0/7/img/46207.jpg)
20 |
SEAT OPENING TRANSMISSION CABLE "PIAGGIO GENUINE PART" APRILIA 250-300-400-500 SCARABEO -AP8114499 More informationQuantity required : 1 |
||||||
|
21 |
AP8114498 - CAVO SERRATURA SELLA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
22 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 2 |
||||||
|
23 |
AP8150359 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/8/img/66008.jpg)
25 |
KEY SWITCH SPRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -253937- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/2/6/img/67626.jpg)
26 |
620415 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/1/4/img/66314.jpg)
27 |
299972 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/9/img/67149.jpg)
28 |
577129 - LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/4/1/img/67241.jpg)
29 |
COMMUTATOR CAP "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTERS -582041- More informationQuantity required : 1 |
||||||
|
30 |
AP8121856 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/8/img/67118.jpg)
31 |
575605 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
32 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
33 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/9/img/66309.jpg)
34 |
KEY SWITCH SPRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -298838- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/6/img/67166.jpg)
35 |
LOCK BLOCK "PIAGGIO GENUINE PART" X7, X9, X10, BEVERLY, CARNABY/APRILIA SCARABEO -577816- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/8/8/img/67988.jpg)
36 |
IGNITION KEY SWITCH "PIAGGIO GENUINE PART" PIAGGIO 125 VESPA LX, LIBERTY, FLY, 125-250-400 X-EVO, X8, BEVERLY, 125-250-300 CARNABY, X7, VESPA GTS, X10, 125-250-500 X9 -643132- More informationQuantity required : 1 |
||||||
|
37 |
AP8127796 - ANTIFURTO ELETTRONICO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/4/3/img/72943.jpg)
38 |
SADDLE LOCK "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -CM023704- More informationQuantity required : 1 |
