Vehicle Exploded View - APRILIA SCARABEO LIGHT 200 Scarabeo 200 IE Light 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

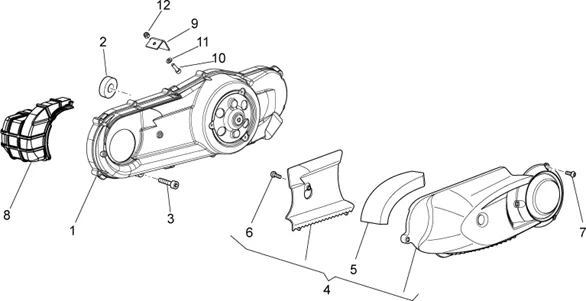

Moteur : 29.50 COUVERCLE VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/611/Scarabeo_200_IE_Light_2009-2010_29.50.PNG)
1 |
AP3MZA000799 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
1 |
JC11341X05300 - COUVERCLE TRANSMISSION More informationQuantity required : 1 |
|||||||||
|
2 |
AP4GAN000301 - ROULEMENT 6202 ZZ C3/5K More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
3 |
SCREW - (6X35) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150285 More informationQuantity required : 12 |
|||||||||
|
4 |
JC63320X94000 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
5 |
JC63323X92000 - FILTRE More informationQuantity required : 1 |
|||||||||
|
6 |
JCE41104216JN00 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
7 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
7 |
2B014101 - INOX HEXAGON COCKET SCREWS M5X12 More informationQuantity required : 5 |
|||||||||
|
8 |
AP3MZA000801 - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
9 |
JC11342X05300 - TTLE More informationQuantity required : 1 |
|||||||||
|
10 |
AP4ADN000014 - VIS More informationQuantity required : 1 |
|||||||||
|
11 |
013934 - RONDELLE PLATE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
12 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
|||||||||
