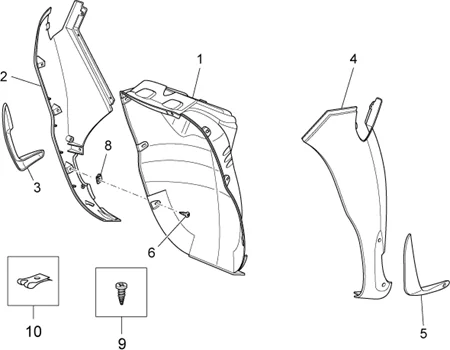

Chassis : 28.10 CARROSSERIE AV. - TABLIER AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/611/Scarabeo_200_IE_Light_2009-2010_28.10.PNG)
1 |
JC48211X92000 - COMPART.ROUE; More informationQuantity required : 1 |
||||||
|
2 |
JC483119200006Z - TABLIER AV.P.D. BLEU More informationQuantity required : 1 |
||||||
|
2 |
JC483119200007B - TABLIER AVANT PEINT NOIR More informationQuantity required : 1 |
||||||
|
2 |
JC483119200007C - TABLIER AVANT SUP. ARGENT More informationQuantity required : 1 |
||||||
|
2 |
JC483119200007D - TABLIER AV BLANC More informationQuantity required : 1 |
||||||
|
2 |
JC483119200007L - TABLIER AV VERT More informationQuantity required : 1 |
||||||
|
2 |
JC483119200007M - TABLIER More informationQuantity required : 1 |
||||||
|
2 |
JC48311X92000 - TABLIER AVANT More informationQuantity required : 1 |
||||||
|
2 |
JC483119200006B - TABLIER AVANT More informationQuantity required : 1 |
||||||
|
3 |
JC48331X92000 - SPOILER D. More informationQuantity required : 1 |
||||||
|
4 |
JC483129200006B - TABLIER AVANT More informationQuantity required : 1 |
||||||
|
4 |
JC483129200006Z - TABLIER AV.P.G. BLEU More informationQuantity required : 1 |
||||||
|
4 |
JC483129200007B - TABLIER AVANT PEINT NOIR More informationQuantity required : 1 |
||||||
|
4 |
JC483129200007C - TABLIER AVANT SUP. ARGENT More informationQuantity required : 1 |
||||||
|
4 |
JC483129200007D - TABLIER AV BLANC More informationQuantity required : 1 |
||||||
|
4 |
JC483129200007L - TABLIER AV VERT More informationQuantity required : 1 |
||||||
|
4 |
JC483129200007M - TABLIER More informationQuantity required : 1 |
||||||
|
4 |
JC48312X92000 - TABLIER AVANT More informationQuantity required : 1 |
||||||
|
5 |
JC48431X92000 - SPOILER G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
6 |
AP8152351 - VIS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
8 |
AP8202449 - CLIP X VITE AUTOFIL.D.4,2 More informationQuantity required : 8 |
||||||
|
9 |
JCE41104219JN00 - VIS 2X19 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
10 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 2 |
