Vehicle Exploded View - APRILIA SCARABEO LIGHT 200 Scarabeo 200 IE Light 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

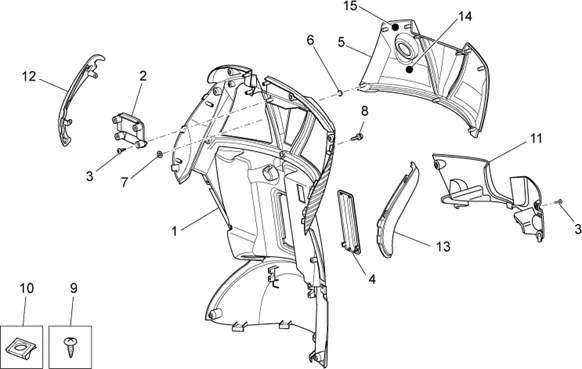

Chassis : 28.11 CARROSSERIE AV. - TABLIER INTERNE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/611/Scarabeo_200_IE_Light_2009-2010_28.11.PNG)
1 |
JC92131X92000 - TABLIER INTERNE; More informationQuantity required : 1 |
|||||||||
|
2 |
JC92191X92000 - GRILLE PROT. POT AV More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413 More informationQuantity required : 6 |
|||||||||
|
4 |
JC92121X92000 - COUV. DONNEES HOM More informationQuantity required : 1 |
|||||||||
|
5 |
JC921819200006B - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
5 |
JC921819200006Z - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
5 |
JC921819200007B - COUVERCLE, NOIR More informationQuantity required : 1 |
|||||||||
|
5 |
JC921819200007C - COUVERCLE, SILVER More informationQuantity required : 1 |
|||||||||
|
5 |
JC921819200007D - COUVERCLE, BLANC More informationQuantity required : 1 |
|||||||||
|
5 |
JC921819200007L - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
5 |
JC921819200007M - COUVERCLE More informationQuantity required : 1 |
|||||||||
|
5 |
HELMET COMPARTMENT "PIAGGIO GENUINE PART" APRILIA 125 SCARABEO LIGHT 2007>2012 -JC92181X92000- More informationQuantity required : 1 |
|||||||||
|
6 |
JC92183X92000 - RONDELLE; More informationQuantity required : 1 |
|||||||||
|
7 |
JC92182X92000 - AGRAFE POINTEAU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
8 |
2B014101 - INOX HEXAGON COCKET SCREWS M5X12 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
8 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/5/img/71975.jpg)
9 |
AP8152351 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
10 |
AP8202449 - CLIP X VITE AUTOFIL.D.4,2 More informationQuantity required : 6 |
|||||||||
|
11 |
JC92141X92000 - GRILLE DRO. More informationQuantity required : 1 |
|||||||||
|
12 |
JC48421X92000 - PRISE AIR GAUCHE More informationQuantity required : 1 |
|||||||||
|
13 |
JC48321X92000 - PRISE AIR DRT More informationQuantity required : 1 |
|||||||||
|
14 |
JC68625X92000 - PLAQUETTE More informationQuantity required : 1 |
|||||||||
|
14 |
JC68625X93000 - PLAQUETTE More informationQuantity required : 1 |
|||||||||
|
15 |
JC68675X94000 - DECALCO More informationQuantity required : 1 |
|||||||||
