Vehicle Exploded View - APRILIA SCARABEO LIGHT 200 Scarabeo 200 IE Light 2009-2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

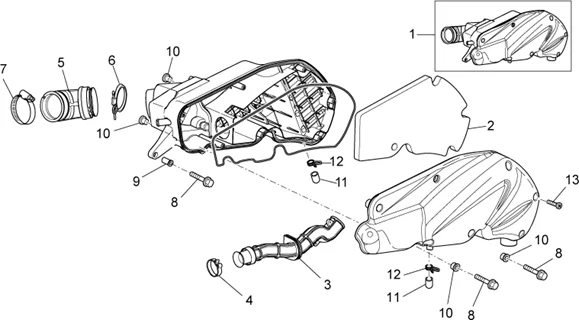

Chassis : 28.27 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/611/Scarabeo_200_IE_Light_2009-2010_28.27.PNG)
1 |
JC13700X94000 - CAISSE FILTRE COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/0/8/6/img/157086.jpg)
2 |
AIR FILTER (PREMIUM) "PIAGGIO GENUINE PART" APRILIA 125 SCARABEO LIGHT 2007> -JC13721X920000P More informationQuantity required : 1 |
||||||
|
2 |
AIR FILTER (PREMIUM) "PIAGGIO GENUINE PART" APRILIA 125 SCARABEO LIGHT 2007> -JC13721X920000P More informationQuantity required : 1 |
||||||
|
3 |
JC13732X92000 - DURITE D'ADMISSION More informationQuantity required : 1 |
||||||
|
4 |
JC13743X92000 - COLLIER More informationQuantity required : 1 |
||||||
|
5 |
JC13731X94000 - MANCHON DE CARBURATEUR More informationQuantity required : 1 |
||||||
|
6 |
JC13742X92000 - COLLIER More informationQuantity required : 1 |
||||||
|
7 |
JC13741X94000 - COLLIER SERR. TUBE More informationQuantity required : 1 |
||||||
|
8 |
JCA20106030JN00 - VIS M6X30 More informationQuantity required : 3 |
||||||
|
9 |
JC13762X92000 - DOUILLE More informationQuantity required : 1 |
||||||
|
10 |
JC13761X92000 - DOUILLE More informationQuantity required : 4 |
||||||
|
11 |
JC13751X92000 - CAPUCHON More informationQuantity required : 2 |
||||||
|
12 |
JC13744X92000 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
13 |
SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146 More informationQuantity required : 8 |
