Vehicle Exploded View - GILERA RUNNER 50 Pure Jet 2010-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

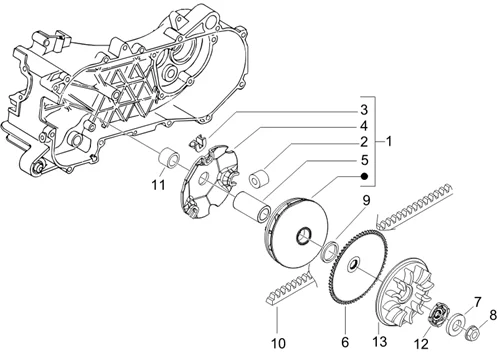

Moteur : 01.13 POULIE MOTRICE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/156/Runner_50_Pure_Jet_2010-2011_01.13.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/1/6/img/73116.JPG)
1 |
CM110304 - DEMI POULIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/1/1/img/73111.jpg)
2 |
VARIATOR ROLLER "PIAGGIO GENUINE PART" 50 FLY 4 STROKE, NRG, VESPA LX 4 STROKE, VESPA SPRINT 4 STROKE, VESPA S 4/APRILIA SR/GILERA RUNNER (SET OF 6) -CM1102035- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/3/4/img/66234.jpg)
3 |
VARIATOR SLIDING BLOCK "PIAGGIO GENUINE PART" 50 ZIP 1996>, TYPHOON 1996>, FLY 2005>, LIBERTY 1998>, NRG 1998>, VESPA LX 2005>, VESPA-S 2007>/GILERA 50 STALKER, RUNNER 1997>/APRILIA 50 SR 2011> -289931- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/9/4/img/66594.jpg)
4 |
VARIATOR ROLLERS CONTRAST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -480227- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/9/5/img/66595.jpg)
5 |
SPACER- VARIATOR MAIN BUSH "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -480230- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/8/1/img/66581.jpg)
6 |
DRIVE HALF PULLEY "PIAGGIO GENUINE PART" 50 TYPHOON 2005>, ZIP 2000>, FLY ET 2005>, LIBERTY 2 STROKE 2005>, NRG 2005>, VESPA LX 2005>, VESPA-S 2007>/GILERA 50 STALKER 2005>/APRILIA 50 SR 2012> -479561- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/9/img/66049.jpg)
7 |
DRIVING PULLEY WASHER (23X15X0,5) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE ET 4 STROKE -265300- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/5/img/66225.jpg)
8 |
NUT - FOR VARIATOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -289519- More informationQuantity required : 1 |
||||||
9 |
CM100616 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/7/img/66507.jpg)
10 |
BELT "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, VESPA PRIMAVERA/APRILIA 50 SR/GILERA 50 STALKER, RUNNER -436864- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/8/img/66578.jpg)
11 |
SPACER- FOR DRIVING PULLEY "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -479495- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/4/5/img/70645.jpg)
12 |
KICK STARTER TEETHED BUSH "PIAGGIO GENUINE PART" COMMUN GAMME SCOOTER 50 2 STROKE + 4 STROKE -877075- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/5/9/img/69359.jpg)
13 |
FAN - DRIVING PULLEY "PIAGGIO GENUINE PART" 50 TYPHOON 2004>, NRG 2005>, ZIP 2000>, VESPA LX 2005>, FLY 2005>/APRILIA 50 SR 2010>/GILERA 50 STALKER 2003>, RUNNER 2004 -845611- More informationQuantity required : 1 |
