Vehicle Exploded View - GILERA RUNNER 50 Pure Jet 2010-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

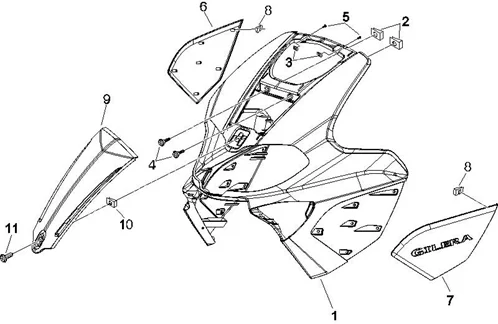

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/156/Runner_50_Pure_Jet_2010-2011_02.26.PNG)
1 |
654985 - TABLIER AV More informationQuantity required : 1 |
|||||||||
|
1 |
FRONT SHIELD - "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2007> BLACK 94 -6549850090- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/5/2/8/img/88528.jpg)
1 |
FRONT SHIELD - "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2008> WHITE 544 -65498500BR- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/5/3/4/img/88534.jpg)
1 |
FRONT SHIELD - "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2007> BLACK 724 80/B -65498560NI- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/5/3/5/img/88535.jpg)
1 |
FRONT SHIELD - "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2008> RED 894 -65498500R7- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
2 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -575249- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
5 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/5/6/8/img/88568.jpg)
6 |
RIGHT FRONT SHIELD LATERAL COVER "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2008> BLACK 80/B -65504300NI- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/5/6/4/img/88564.jpg)
6 |
RIGHT FRONT SHIELD LATERAL COVER "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2008> BLACK 94 -6550430090- More informationQuantity required : 1 |
|||||||||
|
6 |
655043 - FLANC AV DROIT More informationQuantity required : 1 |
|||||||||
|
7 |
655044 - FLANC AV GAUCHE More informationQuantity required : 1 |
|||||||||
|
7 |
LEFT FRONT SHIELD LATERAL COVER "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2008> BLACK 94 -6550440090- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/5/7/5/img/88575.jpg)
7 |
LEFT FRONT SHIELD LATERAL COVER "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2008> BLACK 80/B -65504400NI- More informationQuantity required : 1 |
|||||||||
|
8 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 12 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/6/3/5/img/88635.jpg)
9 |
FRONT SHIELD -CENTRAL- "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER BLACK 80/B -65510760NI- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/6/3/1/img/88631.JPG)
9 |
FRONT SHIELD -CENTRAL- "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER BLACK 94 -6551070090- More informationQuantity required : 1 |
|||||||||
|
9 |
FRONT SHIELD -CENTRAL- "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER RAW TO BE PAINT -655107- More informationQuantity required : 1 |
|||||||||
|
10 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410- More informationQuantity required : 1 |
|||||||||
|
11 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349- More informationQuantity required : 1 |
|||||||||
