Vehicle Exploded View - GILERA RUNNER 50 Pure Jet 2010-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

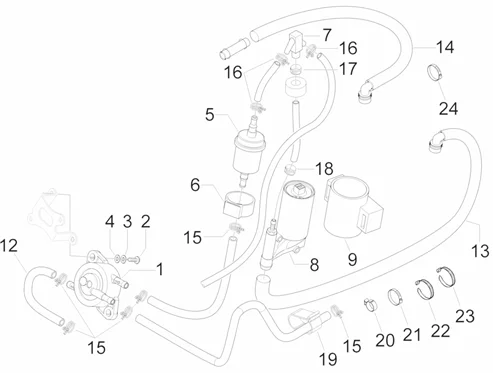

Châssis - parties plastiques - carrosseries : 02.53 INSTALATION DE L'ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/156/Runner_50_Pure_Jet_2010-2011_02.53.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/2/6/img/73126.jpg)
1 |
FUEL PUMP "PIAGGIO GENUINE PART" 50 FLY 4 STROKE 2012>, NRG 2005>, 125 MP3 2007>, X8 2004>, X-EVO 2007>/ 50-125 GILERA RUNNER 2005>/APRILIA 125 ATLANTIC 2003> -CM120903- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/2/img/66032.jpg)
2 |
SCREW - (M5X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER +SCOOTER -259151- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
3 |
016405 - RONDELLE S01640500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
4 |
097733 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/2/8/9/img/77289.jpg)
5 |
FUEL FILTER "PIAGGIO GENUINE PART" 125 MP3 2007>, X7 2008>, X8 2004>, X9 2003>, X-EVO 2007>, VESPA GTS 2007> 50 FLY 4 STROKE 2005>/GILERA 125 NEXUS 2007>, RUNNER 2004> 50 RUNNER PURE-JET 2005> -270423- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/8/img/66118.jpg)
6 |
272842 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/3/4/8/img/81348.jpg)
7 |
577710 - RACCORD T More informationQuantity required : 1 |
||||||
8 |
640514 - POMPE ALIMENTATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/3/5/1/img/81351.jpg)
9 |
FUEL PUMP SUPPORT "PIAGGIO GENUINE PART" 50 NRG INJECTION/GILERA 50 RUNNER INJECTION -577753- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/2/0/3/img/95203.jpg)
12 |
CM018101 - TUBE L=37 More informationQuantity required : 1 |
||||||
|
13 |
949594 - TUYAU More informationQuantity required : 1 |
||||||
|
14 |
949588 - TUYAU RETOUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/2/img/72892.jpg)
15 |
CM002905 - COLLIER EX 194011 More informationQuantity required : 6 |
||||||
|
16 |
CM002905 - COLLIER EX 194011 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
17 |
CM001905 - COLLIER More informationQuantity required : 1 |
||||||
|
18 |
CM001905 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/7/img/72907.JPG)
19 |
CM006905 - RESSOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/8/img/72918.JPG)
20 |
CM013202 - RESSORT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
21 |
CM002907 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
22 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
23 |
257134 - COLLIER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
24 |
CM001901 - COLLIER More informationQuantity required : 2 |
All the exploded views of this vehicle
-
