Vehicle Exploded View - GILERA RUNNER 50 Pure Jet 2010-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

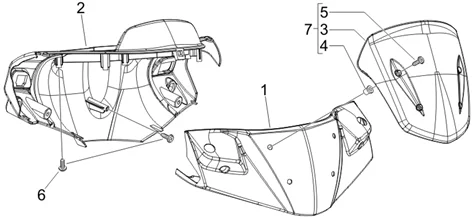

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/156/Runner_50_Pure_Jet_2010-2011_03.01.PNG)
1 |
655189 - COUVRE GUIDON AV More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/6/4/9/img/88649.jpg)
1 |
FRONT HANDLEBAR COVER "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 2005> BLACK 94 -6551890090- More informationQuantity required : 1 |
|||||||||
|
2 |
959347000C - CACHE DIRECTION ARR More informationQuantity required : 1 |
|||||||||
|
3 |
WIND SCREEN "PIAGGIO GENUINE PART" 50-125 RUNNER 2005> -652694- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
4 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716- More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
5 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 - More informationQuantity required : 4 |
|||||||||
|
6 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 - More informationQuantity required : 2 |
|||||||||
|
7 |
WIND SCREEN "PIAGGIO GENUINE PART" 50-125 RUNNER 2005> -652694- More informationQuantity required : 1 |
|||||||||
