Vehicle Exploded View - GILERA RUNNER 125 FX 2T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

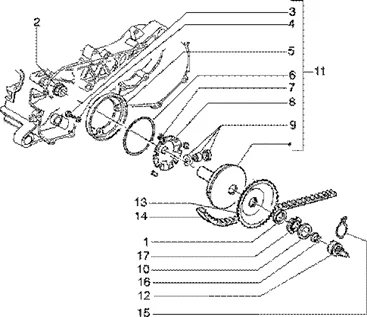

Moteur : T9 POULIE MOTRICE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/662/Runner_125_FX_2T_1998-2005_T9.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/3/6/img/66436.jpg)
1 |
DRIVING PULLEY WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -433391- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/2/1/img/68821.jpg)
2 |
DRIVE TOOTHED PULLEY FOR OIL PUMP "PIAGGIO GENUINE PART" PIAGGIO 125 TYPHOON 2 STROKE, SKIPPER 2 STROKE, HEXAGON 2STROKE/GILERA 125 RUNNER 2STROKE/APRILIA 125 SR 2STROKE -829180- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
3 |
015996 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/6/img/63836.jpg)
4 |
006964 - RONDELLE ELAST. S00696400 More informationQuantity required : 3 |
||||||
5 |
431281 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/0/4/img/66404.jpg)
7 |
VARIATOR SLIDING BLOCK "PIAGGIO GENUINE PART" 125 HEXAGON 2 STROKE, SKIPPER 2 STROKE, TYPHOON 2 STROKE 1998>2004/GILERA 125 RUNNER 2 STROKE 1998>2004/APRILIA 125 SR 2 STROKE 1999>2001 -431280- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/3/img/66653.jpg)
8 |
483981 - FLASQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/7/4/img/73074.jpg)
9 |
VARIATOR ROLLER SET "PIAGGIO GENUINE PART" 125 HEXAGON 2 STROKE/GILERA 125 RUNNER 2 STROKE -CM1024015- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/9/8/img/66598.jpg)
10 |
480692 - RONDELLE SUR POULIE More informationQuantity required : 1 |
||||||
|
11 |
483981 - FLASQUE More informationQuantity required : 1 |
||||||
|
12 |
483538 - PIGNON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/6/8/img/66768.jpg)
13 |
DRIVING HALF PULLEY "PIAGGIO GENUINE PART" 125 TYPHOON 2 STROKE, SKIPPER 2 STROKE, HEXAGON 2 STROKE/GILERA 125 RUNNER 2 STROKE/APRILIA 125 SR 2 STROKE -487957- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/0/img/66460.jpg)
14 |
BELT "PIAGGIO GENUINE PART" 125 TYPHOON, SKIPPER, HEXAGON/GILERA 125 RUNNER/APRILIA 125 SR - ALL 2 STROKE POWERED -434812- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/0/1/img/68901.jpg)
15 |
KICK STARTER NUT-PINION SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -830212- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/3/img/72693.jpg)
16 |
NUT - FOR IGNITION FLYWHEEL/CLUTCH "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250 -B015804- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/9/img/66709.jpg)
16 |
NUT - FOR DRIVEN PULLEY "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -486324- More informationQuantity required : 1 |
