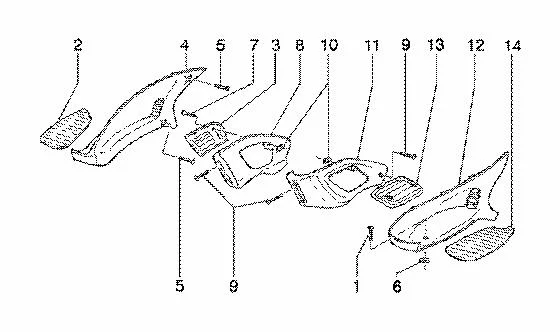

Vehicle Exploded View - GILERA RUNNER 125 FX 2T 1998-2005 GILERA

Châssis : T29 CARÉNAGES
Carénages
Search
SCREW - (6x20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

1
P2R reference P2R reference 66043
Maker reference Maker reference 259830

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

More information

Quantity required : 2
RIGHT FOOTREST MAT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 -299776-

2
P2R reference P2R reference 78079
Maker reference Maker reference 299776

RIGHT FOOTREST MAT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 -299776-

More information

Quantity required : 1
GRID -AIRFLOW-RIGHT "PIAGGIO GENUINE PART" GILERA 125 RUNNER 1998>2004 -298895 00C-

3
P2R reference P2R reference 78019
Maker reference Maker reference 298895000C

GRID -AIRFLOW-RIGHT "PIAGGIO GENUINE PART" GILERA 125 RUNNER 1998>2004 -298895 00C-

More information

Quantity required : 1
GRID -AIRFLOW-RIGHT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2004 -5756590028-

3
P2R reference P2R reference 80641
Maker reference Maker reference 5756590028

GRID -AIRFLOW-RIGHT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2004 -5756590028-

More information

Quantity required : 1
298134000D - REPOSE PIED DR GRISE

4
P2R reference P2R reference 77965
Maker reference Maker reference 298134000D

298134000D - REPOSE PIED DR GRISE

More information

Quantity required : 1
298134000P - REPOSE PIED D

4
P2R reference P2R reference 77966
Maker reference Maker reference 298134000P

298134000P - REPOSE PIED D

More information

Quantity required : 1
SCREW - FOR FAIRINGS FASTENING (3,5x13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

5
P2R reference P2R reference 66301
Maker reference Maker reference 297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

More information

Quantity required : 4
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

6
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 4
SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 x16) -CM178606-

7
P2R reference P2R reference 96280
Maker reference Maker reference 270723

SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606-

More information

Quantity required : 7
2988930003 - PRISE AIR VIOLET

8
P2R reference P2R reference 78013
Maker reference Maker reference 2988930003

2988930003 - PRISE AIR VIOLET

More information

Quantity required : 1
298893000P - PRISE AIR DRT NOIR

8
P2R reference P2R reference 78014
Maker reference Maker reference 298893000P

298893000P - PRISE AIR DRT NOIR

More information

Quantity required : 1
2988930043 - PRISE AIR GRISE DRT

8
P2R reference P2R reference 78015
Maker reference Maker reference 2988930043

2988930043 - PRISE AIR GRISE DRT

More information

Quantity required : 1
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 -

9
P2R reference P2R reference 66028
Maker reference Maker reference 258249

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258249 -

More information

Quantity required : 8
015911 - VIS S01591100

9
P2R reference P2R reference 65403
Maker reference Maker reference 015911

015911 - VIS S01591100

More information

Quantity required : 2
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410-

10
P2R reference P2R reference 72926
Maker reference Maker reference CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410-

More information

Quantity required : 8
2988920043 - PRISE AIR G GRISE EX 298892000A

11
P2R reference P2R reference 78010
Maker reference Maker reference 2988920043

2988920043 - PRISE AIR G GRISE EX 298892000A

More information

Quantity required : 1
2988920028 - PRISE AIR G ROUGE

11
P2R reference P2R reference 78008
Maker reference Maker reference 2988920028

2988920028 - PRISE AIR G ROUGE

More information

Quantity required : 1
298892000P - PRISE AIR GAUCHE NOIR

11
P2R reference P2R reference 78007
Maker reference Maker reference 298892000P

298892000P - PRISE AIR GAUCHE NOIR

More information

Quantity required : 1
LEFT AIR INTAKE "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER -298892000G-

11
P2R reference P2R reference 78006
Maker reference Maker reference 298892000G

LEFT AIR INTAKE "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER -298892000G-

More information

Quantity required : 1
298133000D - REPOSE PIED G GRIS

12
P2R reference P2R reference 77962
Maker reference Maker reference 298133000D

298133000D - REPOSE PIED G GRIS

More information

Quantity required : 1
LEFT FOOTREST "PIAGGIO GENUINE PART" PIAGGIO 50-125 RUNNER -298133000P-

12
P2R reference P2R reference 77963
Maker reference Maker reference 298133000P

LEFT FOOTREST "PIAGGIO GENUINE PART" PIAGGIO 50-125 RUNNER -298133000P-

More information

Quantity required : 1
GRID -AIRFLOW-LEFT "PIAGGIO GENUINE PART" GILERA 125 RUNNER 1998>2004 -298894000C-

13
P2R reference P2R reference 78018
Maker reference Maker reference 298894000C

GRID -AIRFLOW-LEFT "PIAGGIO GENUINE PART" GILERA 125 RUNNER 1998>2004 -298894000C-

More information

Quantity required : 1
GRID -AIRFLOW-LEFT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2004 -5756580028-

13
P2R reference P2R reference 80640
Maker reference Maker reference 5756580028

GRID -AIRFLOW-LEFT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2004 -5756580028-

More information

Quantity required : 1
LEFT FOOTREST MAT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 -299775-

14
P2R reference P2R reference 78078
Maker reference Maker reference 299775

LEFT FOOTREST MAT "PIAGGIO GENUINE PART" GILERA 50-125 RUNNER 1998>2005 -299775-

More information

Quantity required : 1
