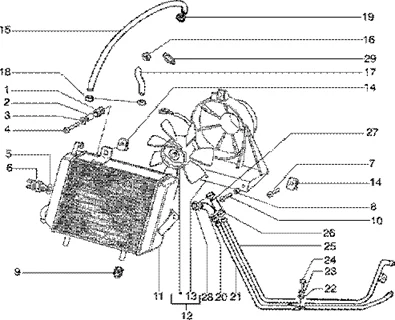

Vehicle Exploded View - GILERA RUNNER 125 FX 2T 1998-2005

	P2R reference	65639
	Maker reference	0310885

031088 - VIS S03108800

	P2R reference	66345
	Maker reference	351782

351782 - ENTRETOISE

	P2R reference
	Maker reference	299967

DURITE EAU RETOUR

	P2R reference	66123
	Maker reference	273288

SPACER- "PIAGGIO GENUINE PART" COMMON TO THE RANGE -273288-

	P2R reference	65356
	Maker reference	0130925

013092 - RONDELLE S01309200

	P2R reference	63777
	Maker reference	0030565

003056 - RONDELLE

	P2R reference	65416
	Maker reference	0164065

016406 - RONDELLE S01640600

	P2R reference	66107
	Maker reference	271891

SCREW - (6X30) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -271891-

	P2R reference	65461
	Maker reference	0201065

020106 - ECROU S02010600

	P2R reference	65768
	Maker reference	168077

COPPER GASKET FOR HEAT SENSOR "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -168077

	P2R reference	72868
	Maker reference	CM001907

COOLANT//AIR FILTER HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001907

	P2R reference	77687
	Maker reference	293301

SWITCH /TEMPERATURE SENSOR "PIAGGIO GENUINE PART" 125 HEXAGON/APRILIA 125 RUNNER -293301-

	P2R reference	78093
	Maker reference	299970

299970 - DURITE EAU COUDEE

	P2R reference	66043
	Maker reference	259830

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830-

	P2R reference	65341
	Maker reference	0121125

012112 - ECROU S01211200

	P2R reference	72868
	Maker reference	CM001907

COOLANT//AIR FILTER HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001907

	P2R reference	66031
	Maker reference	258904

SILENBLOC "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCCOOTER -258904-

	P2R reference	65399
	Maker reference	0158565

SCREW - 5X21 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015856-

	P2R reference	78063
	Maker reference	299388

299388 - RADIATEUR 125 FX

	P2R reference	80178
	Maker reference	57301R

57301R - RADIATEUR

	P2R reference	81469
	Maker reference	580922

580922 - ELECTRO VENTILATEUR

	P2R reference
	Maker reference	299382

SUPPORT DE VENTILO

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	80179
	Maker reference	573059

573059 - TUYAU

	P2R reference	84024
	Maker reference	621564

621564 - TUYAU

	P2R reference	72866
	Maker reference	CM001904

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904

	P2R reference
	Maker reference	573060

TUYAU RETOUR

	P2R reference	72865
	Maker reference	CM001903

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001903-

	P2R reference	72865
	Maker reference	CM001903

HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001903-

	P2R reference
	Maker reference	299943

DURITE D'EAU BASSE

	P2R reference
	Maker reference	299940

TUYAU DE RETOUR

	P2R reference	80508
	Maker reference	575264

575264 - TUYAU

	P2R reference	65416
	Maker reference	0164065

016406 - RONDELLE S01640600

	P2R reference	63777
	Maker reference	0030565

003056 - RONDELLE

	P2R reference	65639
	Maker reference	0310885

031088 - VIS S03108800

	P2R reference
	Maker reference	299939

TUYAU DE REFOULEMENT

	P2R reference
	Maker reference	575262

TUYAU

	P2R reference	72868
	Maker reference	CM001907

COOLANT//AIR FILTER HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001907

	P2R reference	78089
	Maker reference	299944

299944 - DURITE EAU HAUTE

	P2R reference	72868
	Maker reference	CM001907

COOLANT//AIR FILTER HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001907

	P2R reference	65742
	Maker reference	145298

LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298
