Vehicle Exploded View - GILERA RUNNER 125 FX 2T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

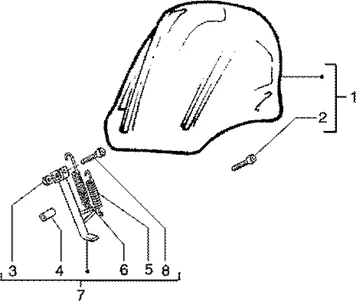

Châssis : T56 KIT PARE- BRIS-KIT BÉQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/662/Runner_125_FX_2T_1998-2005_T56.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/9/4/3/img/79943.jpg)
1 |
563662 - KIT PARE-BRIS FX RUN More informationQuantity required : 1 |
||||||
1 |
620073 - KIT PARE-BRIS RUNNER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
2 |
SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146 More informationQuantity required : 2 |
||||||
|
2 |
FAISCEAU CABLES |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
3 |
NUT - M8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020008 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/8/img/67268.jpg)
4 |
CENTRAL STAND RUBBER PAD "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER + MAXISCOOTER -582885 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/7/img/66287.jpg)
5 |
SPRING - FOR CENTRAL STAND "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -295789 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/6/img/66286.jpg)
6 |
SPRING - FOR STAND "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -295788 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/9/2/4/img/79924.jpg)
7 |
SIDE STAND "PIAGGIO GENUINE PART" 50-125 RUNNER 1998>2005 -563649 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/7/2/4/img/79724.jpg)
8 |
560619 - PIVOT More informationQuantity required : 1 |
All the exploded views of this vehicle
-
