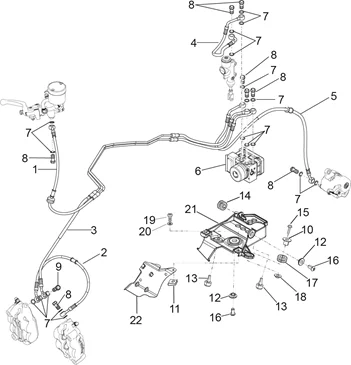

Système frein abs : 06.050 SYSTÈME FREIN ABS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/564/RSV4_1000_RR_Racer_Pack_2015_06.050.PNG)
1 |
B044589 - TUBE FREIN AV More informationQuantity required : 1 |
||||||
|
2 |
B044591 - TUBE FREIN AV More informationQuantity required : 1 |
||||||
|
3 |
B044590 - TUBE FREIN AV More informationQuantity required : 1 |
||||||
|
4 |
B044592 - TUYAU FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
5 |
B044593 - TUYAU FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/3/8/9/img/62389.jpg)
6 |
ABS CONTROL UNIT "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO, 1100 TUONO -B044760- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
7 |
AP8113004 - RONDELLE More informationQuantity required : 19 |
||||||
|
8 |
2B001983 - VIS TUYAU FREIN More informationQuantity required : 8 |
||||||
|
9 |
B044594 - FAHRERSITZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
10 |
AP8221023 - "DOUILLE EN ""T"" *" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
11 |
AP8102381 - CLIP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/5/9/7/img/72597.jpg)
12 |
AP9100053 - BUSSOLA COLLETTO D16-D10-SP3.5 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/4/7/2/img/61472.jpg)
13 |
AP8706087 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/4/img/97064.jpg)
14 |
AP8120223 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/0/img/71940.JPG)
15 |
AP8152274 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
16 |
AP8152186 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
17 |
AP8120030 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
18 |
AP8121032 - DOUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
19 |
SCREW - (4,70X10) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152043- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.JPG)
20 |
AP8150011 - RONDELLE More informationQuantity required : 1 |
||||||
|
21 |
B044551 - SUPPORT More informationQuantity required : 1 |
||||||
|
22 |
B045095 - PROTECTION BR?LURE More informationQuantity required : 1 |
