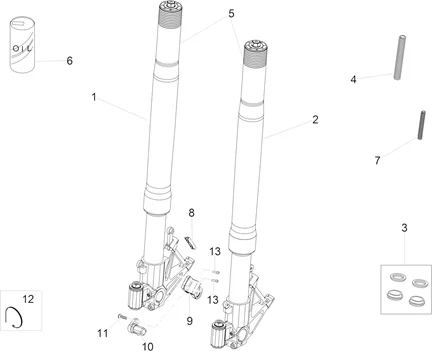

Suspensions : 04.010 FOURCHE AV. OHLINS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/564/RSV4_1000_RR_Racer_Pack_2015_04.010.PNG)
1 |
897302 - TIGE DROITE More informationQuantity required : 1 |
||||||
|
2 |
854547 - TIGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/4/4/1/img/156441.JPG)
3 |
2B006021 - JEU DE JOINTS More informationQuantity required : 2 |
||||||
|
3 |
2B006021 - JEU DE JOINTS More informationQuantity required : 2 |
||||||
|
4 |
893945 - RESSORT EMBRAYAGE More informationQuantity required : 2 |
||||||
|
5 |
AP8123977 - GR. BOUCHON CPL. More informationQuantity required : 2 |
||||||
|
6 |
AP8116071 - HUILE FOURCHE More informationQuantity required : 1 |
||||||
|
7 |
893966 - CONTRE-RESSORT; More informationQuantity required : 2 |
||||||
|
8 |
896944 - PASSE-CABLE More informationQuantity required : 1 |
||||||
|
9 |
B046203 - SUPPORT DETECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.JPG)
10 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 1 |
||||||
|
10 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
11 |
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267- More informationQuantity required : 1 |
||||||
|
12 |
AP8102386 - FASCETTA IN NYLON NERA More informationQuantity required : 1 |
||||||
|
13 |
AP8150064 - VIS FHC More informationQuantity required : 2 |
