Vehicle Exploded View - APRILIA RSV4 1000 RR Racer Pack 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

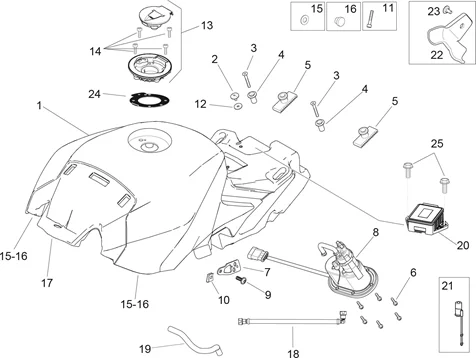

Réservoir : 09.010 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/564/RSV4_1000_RR_Racer_Pack_2015_09.010.PNG)
1 |
2H000843000Z4 - RESERVOIR ESS. More informationQuantity required : 1 |
||||||
|
1 |
2H001052000Z4 - RESERVOIR ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/2/0/1/6/img/52016.jpg)
2 |
FUEL TANK FASTENING SCREW "PIAGGIO GENUINE PARTS" APRILIA 1000-1100 RSV-4, TUONO V4, 750-900-1200 DORSODURO, 1200 CAPONORD -AP8161127- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/3/img/67143.jpg)
3 |
SCREW - FOR BAR ENDS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -576836- More informationQuantity required : 2 |
||||||
|
4 |
893273 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/2/3/img/46623.jpg)
5 |
AP8120663 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
6 |
AP8152273 - VIS BRIDE More informationQuantity required : 6 |
||||||
|
7 |
858886 - SUPPORT FLANC G More informationQuantity required : 1 |
||||||
|
8 |
B043925 - POMPE ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/3/img/71903.JPG)
9 |
AP8150538 - VITE TBEI M5 X 10 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
10 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 1 |
||||||
|
11 |
AP8150505 - VITE TCEI M4X6 INOX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/7/img/71847.jpg)
12 |
AP8150255 - RONDELLE More informationQuantity required : 1 |
||||||
|
13 |
B043929 - BOUCHON ESSENCE More informationQuantity required : 1 |
||||||
|
14 |
B043864 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/6/5/img/56865.jpg)
15 |
AP8220366 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/6/3/7/img/49637.jpg)
16 |
RUBBER SPACER "PIAGGIO GENUINE PART" APRILIA DORSODURO, RSV-2, RSV-4, TUONO -AP8144158- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/1/img/71771.jpg)
17 |
AP8144565 - RONDELLA IN NYLON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/3/2/img/40632.jpg)
18 |
FUEL HOSE "PIAGGIO GENUINE PART" 1000 RSV-4, TUONO V4 -858884- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/9/4/img/42394.JPG)
19 |
895959 - TUYAU PURGE RESER. More informationQuantity required : 2 |
||||||
|
20 |
894604 - DETECTEUR More informationQuantity required : 1 |
||||||
|
21 |
899068 - DETECTEUR More informationQuantity required : 1 |
||||||
|
22 |
B044550 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
23 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/8/img/71238.jpg)
24 |
AP8104803 - GUARNIZIONE TAPPO BENZINA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
25 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 4 |
