Vehicle Exploded View - APRILIA RSV4 1000 RR Racer Pack 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

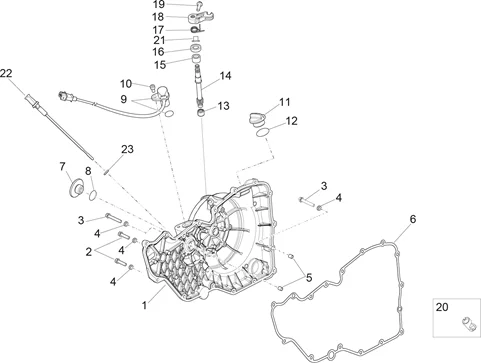

Moteur : 03.220 COUVERCLE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/564/RSV4_1000_RR_Racer_Pack_2015_03.220.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/3/2/1/img/142321.JPG)
1 |
CLUTCH COVER "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO, 1100 RSV-4 -1A007273- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/8/img/69758.jpg)
2 |
857429 - VIS BRIDE More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/8/5/img/40385.jpg)
3 |
857436 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
4 |
658830 - RONDELLE More informationQuantity required : 16 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/5/6/img/66356.JPG)
5 |
411209 - GOUJON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/8/9/img/40389.jpg)
6 |
GASKET FOR CLUTCH COVER "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, 1000 TUONO, 1100 TUONO -857451- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/4/1/9/img/40419.jpg)
7 |
INSPECTION COVER FOR CLUTCH "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4, TUONO V4 -857543 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/7/9/img/40279.jpg)
8 |
857078 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/7/img/67817.jpg)
9 |
SENSOR FOR IGNITION "PIAGGIO GENUINE PART"400 X-EVO, BEVERLY, 500 X9/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 850 V9/APRILIA 1000-1100 RSV-4, TUONO V4, 850 SRV, 400-500 ATLANTIC/GILERA 800 GP -6389915- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/1/4/img/65714.jpg)
10 |
122675 - VIS More informationQuantity required : 1 |
||||||
11 |
974229 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/7/2/5/img/49725.JPG)
12 |
AP8144424 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/4/9/8/img/62498.JPG)
13 |
B045224 - CAGE A ROULEAUX More informationQuantity required : 1 |
||||||
|
14 |
2A000033R - ARBRE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
15 |
B045224 - CAGE A ROULEAUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/1/1/img/40311.jpg)
16 |
GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -857127- More informationQuantity required : 1 |
||||||
|
17 |
857461 - RETOUR LEVIER DEMARRAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/3/8/1/img/40381.jpg)
18 |
CLUTCH CONTROL LEVER "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO V4 -857314- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
19 |
AP8152279 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/1/1/8/img/62118.jpg)
20 |
CLUTCH CONTROL PIN BUSHING "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO -B043542- More informationQuantity required : 1 |
||||||
|
21 |
857460 - DOUILLE EN "T" More informationQuantity required : 1 |
||||||
|
22 |
2A000573 - TIGE NIVEAU HUILE More informationQuantity required : 1 |
||||||
|
23 |
2A000632 - OUT.MONT.JOINT COUVER.DISTRIB. 9X1.5 More informationQuantity required : 1 |
