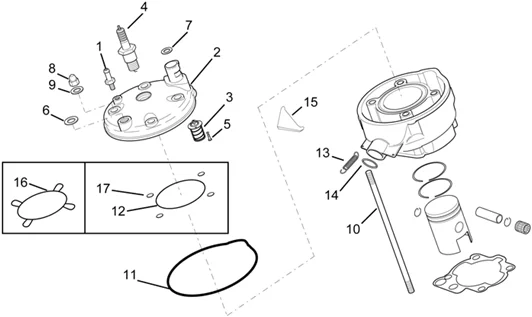

Moteur : 29.40 CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/267/RS_50_1999-2005_29.40.PNG)
1 |
AP8206618 - RACCORD POUR TUYAU EAU More informationQuantity required : 1 |
||||||
|
2 |
AP8206970 - CULASSE More informationQuantity required : 1 |
||||||
|
2 |
AP8206949 - CULASSE More informationQuantity required : 1 |
||||||
|
3 |
AP8206383 - THERMOSTAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/7/9/img/72179.jpg)
4 |
SPARK PLUG BR9ES "PIAGGIO GENUINE PART" COMMON TO ALL 50CC MOTORBIKES -AP8206915- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/3/3/img/61033.jpg)
5 |
AP8502559 - VIS CH+RONDELLE EV. More informationQuantity required : 2 |
||||||
|
6 |
AP8508560 - JOINT VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/5/0/img/61050.jpg)
7 |
OIL PLUG SEAL Ø8X14 "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, MX, EUROPA, CLASSIC -AP8502759- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/8/2/7/img/55827.jpg)
8 |
AP8206427 - ECROU AUTOBL.BORGNE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/9/6/7/img/55967.jpg)
9 |
AP8206721 - RONDELLE ELASTIQUE More informationQuantity required : 4 |
||||||
|
10 |
AP8508553 - VIS SANS T?TE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/0/7/8/img/56078.jpg)
11 |
O'RING GASKET FOR CYLINDER HEAD "PIAGGIO GENUINE PART" APRILIA 50 RS, RX, SX, TUONO -AP8206947- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/7/5/img/55775.jpg)
11 |
O'RING GASKET FOR CYLINDER HEAD "PIAGGIO GENUINE PART" APRILIA 50 CLASSIC, AF1, EUROPA, PEGASO, RS -AP8206286- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/7/4/img/55774.jpg)
12 |
AP8206285 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
13 |
AP8507839 - RESS.FIX.TUY.ECHAP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/4/5/img/61045.jpg)
14 |
AP8502668 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/0/9/7/img/56097.jpg)
14 |
AP8206976 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
15 |
AP8508882 - PLAQUE FIX.RESSORTS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/0/7/9/img/56079.jpg)
16 |
AP8206948 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/4/2/img/61042.jpg)
17 |
AP8502655 - JOINT TORIQUE More informationQuantity required : 4 |
