Vehicle Exploded View - APRILIA RS 50 1999-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

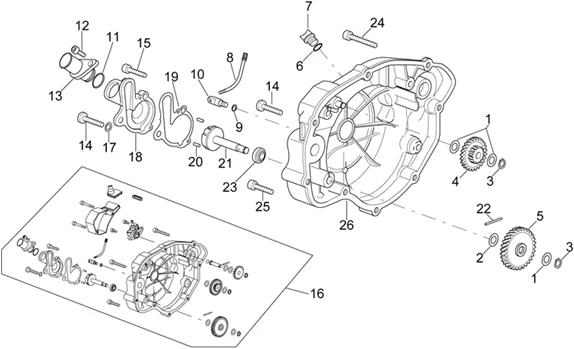

Moteur : 29.46 COUVERCLE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/267/RS_50_1999-2005_29.46.PNG)
1 |
AP8206345 - RONDELLE ACIER BLEU More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/6/8/img/55768.jpg)
2 |
AP8206277 - RONDELLE ACIER BLEU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/0/9/img/61009.jpg)
3 |
AP8501467 - BAGUE SEEGER POUR ARBRE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/9/9/img/55799.jpg)
4 |
AP8206327 - ENGR.DOUBLE INTERM. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/8/0/0/img/55800.jpg)
5 |
AP8206328 - ENGRENAGE POMPE EAU MENE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/4/5/img/55745.jpg)
7 |
AP8206245 - BOUCHON ALIMENTATION HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/8/1/img/61081.jpg)
8 |
OIL PUMP CABLE GUIDE "PIAGGIO GENUINE PART" APRILIA 50 RX, SX, RS, MX, PEGASO, EUROPA, CLASSIC, AF1 -AP8509334- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/5/0/img/61050.jpg)
9 |
OIL PLUG SEAL Ø8X14 "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, MX, EUROPA, CLASSIC -AP8502759- More informationQuantity required : 1 |
||||||
|
10 |
AP8206235 - PONT REGLAGE More informationQuantity required : 1 |
||||||
|
11 |
AP8206262 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
12 |
AP8206202 - VIS More informationQuantity required : 2 |
||||||
|
13 |
AP8206320 - MANCHON ARRIVEE POMPE More informationQuantity required : 1 |
||||||
|
14 |
AP8206508 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/3/7/img/61037.jpg)
15 |
AP8502571 - VIS More informationQuantity required : 1 |
||||||
|
16 |
AP8206881 - COUVERCLE EMBRAYAGE CPL, NOIR More informationQuantity required : 1 |
||||||
|
16 |
AP8206880 - COUV.EMBR.CPL MAR. More informationQuantity required : 1 |
||||||
|
16 |
AP8276001 - COPERCHIO FRIZIONE CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/4/9/img/61049.jpg)
17 |
AP8502758 - JOINT VIS HUILE More informationQuantity required : 1 |
||||||
|
18 |
WATER PUMP BODY "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, MX, TUONO -AP8206649- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/6/8/img/72168.jpg)
19 |
AP8206334 - JOINT CORPS POMPE EAU More informationQuantity required : 1 |
||||||
|
21 |
AP8206335 - PIVOT POMPE EAU+ROTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/6/6/img/61066.JPG)
22 |
AP8508669 - ROULEAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/7/1/img/61071.jpg)
23 |
SEAL RING GASKET- FOR WATER PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50/50 A BOITE 1995>2000 -AP8509130- More informationQuantity required : 1 |
||||||
|
24 |
AP8502566 - VIS More informationQuantity required : 7 |
||||||
|
26 |
AP8276005 - COPERCHIO FRIZIONE +PERNO More informationQuantity required : 1 |
