Vehicle Exploded View - APRILIA RS 50 1999-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

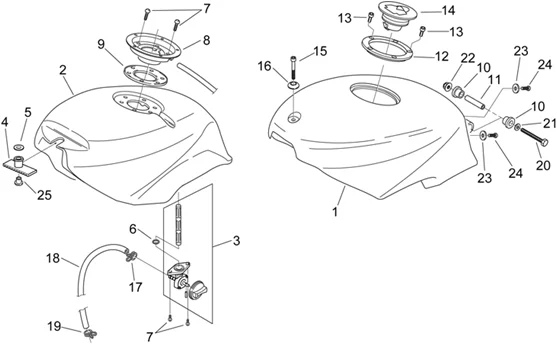

Chassis : 28.10 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/267/RS_50_1999-2005_28.10.PNG)
1 |
AP8258774 - CACHE-RESERVOIR, NOIR More informationQuantity required : 1 |
||||||
|
1 |
AP8248790 - CACH-RES.ESS.BL.FUM. More informationQuantity required : 1 |
||||||
|
1 |
AP8249590 - CACHE-RESERVOIR, NOIR; More informationQuantity required : 1 |
||||||
|
1 |
AP8249809 - CACHE-RESERVOIR, GRIS; More informationQuantity required : 1 |
||||||
|
1 |
AP8258190 - CACHE-RESERVOIR, GRIS S.; More informationQuantity required : 1 |
||||||
|
1 |
AP8258421 - CACHE-RESERVOIR, NOIR; More informationQuantity required : 1 |
||||||
|
1 |
AP8258566 - CACHE-RESERVOIR, SILVER; More informationQuantity required : 1 |
||||||
|
1 |
AP8178560 - COPRISERBATOIO BENZ.V.NERO AP. More informationQuantity required : 1 |
||||||
|
1 |
AP8258791 - CACHE-RESERVOIR, BLEU; More informationQuantity required : 1 |
||||||
|
1 |
AP8258816 - CACHE-RESERVOIR, NOIR More informationQuantity required : 1 |
||||||
|
1 |
AP8268265 - COPRISERBATOIO BENZ.V.BIA.APR. More informationQuantity required : 1 |
||||||
|
1 |
AP8268378 - COPRISERBATOIO BENZ.V.ROSSO FL More informationQuantity required : 1 |
||||||
|
1 |
AP8268455 - COPRISERBATOIO BENZ.V.NERO APR More informationQuantity required : 1 |
||||||
|
1 |
AP8239467 - CACH-RES.ESS.NOIR A.; More informationQuantity required : 1 |
||||||
|
2 |
AP8239466 - RESERVOIR ESSENCE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/4/3/2/img/55432.jpg)
3 |
FUEL TAP "PIAGGIO GENUINE PART" APRILIA 50 RS 1999>2005, TUONO 2003>2004 -AP8202129- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/3/img/71403.jpg)
4 |
AP8120557 - CAOUTCHOUC RESERV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/5/img/71435.jpg)
5 |
AP8121114 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/4/9/img/46649.jpg)
6 |
AP8120798 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
7 |
AP8152186 - VIS More informationQuantity required : 8 |
||||||
|
8 |
AP8121784 - TUBULURE REMPLISSAGE More informationQuantity required : 1 |
||||||
|
9 |
AP8120702 - JOINT ORIFICE REMPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/3/1/img/46631.jpg)
10 |
AP8120709 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/5/9/img/50959.jpg)
11 |
SPACER- FOR FUEL TANK MOUNTING "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO, 125 AF1 -AP8152153- More informationQuantity required : 1 |
||||||
|
12 |
AP8102361 - BAGUE BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/0/img/71910.jpg)
13 |
SCREW - (4,70X10) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152043- More informationQuantity required : 5 |
||||||
|
14 |
AP8202380 - TAPPO BENZINA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/8/img/71838.jpg)
15 |
AP8150202 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/9/img/71489.jpg)
16 |
WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, SX, 1000 CAPONORD/MOTO-GUZZI 1200 STELVIO -AP8121819- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/0/img/72130.jpg)
17 |
AP8201358 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
18 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -896544- More informationQuantity required : 1 |
||||||
|
19 |
AP8102377 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/5/6/img/50856.jpg)
20 |
SCREW - FOR FUEL TANK MOUNTING "PIAGGIO GENUINE PART" APRILIA RS 50-125 1999>2010/SCREW FOR SPIDER PLATE- APRILIA SL 1000 FALCO 2000>2003, TUONO 1000 2002>2005 -AP8150314- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
21 |
658830 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
22 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
|
23 |
AP8150178 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/3/img/71913.jpg)
24 |
AP8152108 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/0/img/71480.jpg)
25 |
AP8121673 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
