Vehicle Exploded View - APRILIA RS 50 1999-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

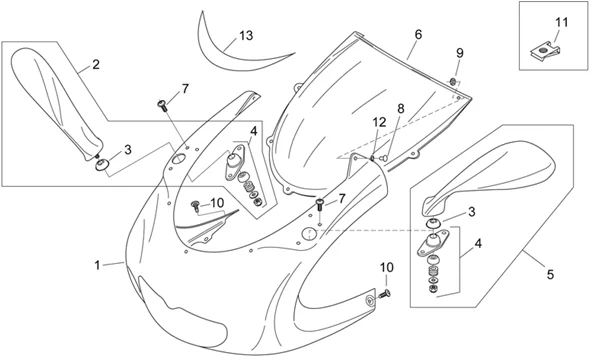

Chassis : 28.08 CARROSSERIE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/267/RS_50_1999-2005_28.08.PNG)
1 |
AP8268379 - FRONTALE CARENA V.NERO APRILIA More informationQuantity required : 1 |
|||||||||
|
1 |
AP8268456 - FRONTALE CARENA V.NERO APRILIA More informationQuantity required : 1 |
|||||||||
|
1 |
AP8268266 - FRONTALE CARENA V.BIANCO APR. More informationQuantity required : 1 |
|||||||||
|
1 |
AP8268158 - FRONTALE CARENA V.NERO APRILIA More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258817 - AVANT CARENAGE, NOIR More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258792 - AVANT CARENAGE, BLEU; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258775 - AVANT CARENAGE, NOIR More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258567 - AVANT CARENE GRIS; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258422 - AVANT CARENAGE, NOIR D.; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258191 - AVANT CARENAGE, NOIR D.; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8249810 - AVANT CARENAGE, GRIS N; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/8/8/1/1/img/58811.jpg)
1 |
FRONT FAIRING "PIAGGIO GENUINE PARTS" APRILIA RS 50 1999>2005 BLACK -AP8249591- More informationQuantity required : 1 |
|||||||||
|
1 |
AP8248791 - FRONT CARENE BL.FUM. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/9/7/img/45197.JPG)
2 |
MIRROR- RIGHT "PIAGGIO GENUINE PART" 50-125-250 RS 1999>2010, 1000 RSV-2 2000>2003, FALCO 2000>2003 -AP8102632- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/5/1/img/45151.jpg)
3 |
AP8102341 - CUVETTE ARTICUL.RETR. More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/5/2/img/45252.jpg)
4 |
MIRROR MOUNTING KIT "PIAGGIO GENUINE PART" 50-125-250 RS 2000> -AP8102909- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/9/8/img/45198.jpg)
5 |
MIRROR- LEFT "PIAGGIO GENUINE PART" 50-125-250 RS 1999>2010, 1000 RSV-2 2000>2003, FALCO 2000>2003 -AP8102633- More informationQuantity required : 1 |
|||||||||
|
6 |
AP8249094 - VITRE COUPOLE; More informationQuantity required : 1 |
|||||||||
|
6 |
WINDSHIELD "PIAGGIO GENUINE PART" APRILIA 50-125-250 RS -AP8138916- More informationQuantity required : 1 |
|||||||||
|
6 |
AP8148663 - VITRE COUPOLE; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
7 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/0/img/71750.jpg)
8 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO, 1000 CAPONORD, RSV-2, ATLANTIC, SCARABEO -AP8144109- More informationQuantity required : 7 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
9 |
WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450- More informationQuantity required : 7 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
10 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
11 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 10 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/4/img/71424.jpg)
12 |
O'RING GASKET FOR FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120965- More informationQuantity required : 7 |
|||||||||
|
13 |
AP8157105 - DEC. VERRE COUPOLE; More informationQuantity required : 1 |
|||||||||
