Vehicle Exploded View - APRILIA RS 125 1995-1995
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

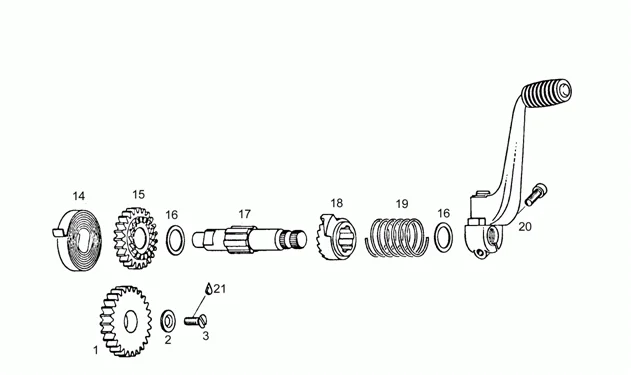

Moteur : 8 LEVIER DÉMARRAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/268/RS_125_1995-1995_8.PNG)
1 |
AP0634177 - PIGNON INTERMEDIAIRE Z=26 More informationQuantity required : 1 |
||||||
|
2 |
AP0227280 - RACLEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/9/1/img/44591.jpg)
3 |
AP0940315 - VIS More informationQuantity required : 1 |
||||||
|
14 |
AP0239265 - RESSORT KICK More informationQuantity required : 1 |
||||||
|
15 |
AP0634055 - PIGNON ALLUM. CPL More informationQuantity required : 1 |
||||||
|
16 |
AP0244585 - RONDELLE More informationQuantity required : 2 |
||||||
|
18 |
AP0228220 - ENCLENCHEMENT ALLUM. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/6/6/3/img/43663.jpg)
19 |
RETAINING SPRING FOR KICK STARTER" PIAGGIO GENUINE PART" APRILIA 125 RS 1995>1998, RX, SX, MX -AP0239270- More informationQuantity required : 1 |
||||||
|
20 |
AP0248365 - LEVIER ALLUMAGE More informationQuantity required : 1 |
||||||
|
21 |
AP0899785 - LOCTITE VIOLET More informationQuantity required : 1 |
