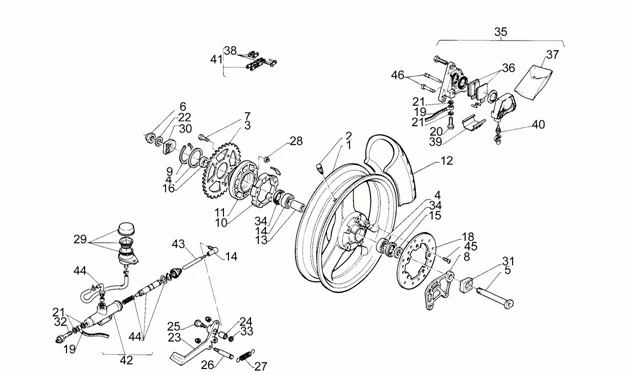

Chassis : 17 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/268/RS_125_1995-1995_17.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/9/img/71159.jpg)
2 |
TUBELESS TYRE VALVE "PIAGGIO GENUINE PART" COMMON FOR APRILIA /MOTO-GUZZI MOTORBIKES -AP8101744- More informationQuantity required : 1 |
||||||
4 |
AP8102296 - ANNEAU ELAST. COUR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/9/1/9/img/39919.jpg)
5 |
REAR WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA 125 RS 2006>2010, TUONO -854963- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/4/7/img/47747.jpg)
6 |
NUT - FOR REAR WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA CAPONORD, DORSODURO, TUONO, RS, FUTURA -AP8125763- More informationQuantity required : 1 |
||||||
|
8 |
AP8134911 - PLAQ. FIX PINCE FREIN; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/4/6/img/46646.JPG)
10 |
SILENTBLOC FOR REAR CHAIN SPROCKET "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO -AP8120792- More informationQuantity required : 1 |
||||||
|
11 |
AP8125628 - PORTE-COURONNE More informationQuantity required : 1 |
||||||
|
13 |
AP8125645 - ENTRETOISE INT. ROUE AR.; More informationQuantity required : 1 |
||||||
|
14 |
AP8125873 - ROULEMENT More informationQuantity required : 2 |
||||||
|
15 |
AP8125639 - ENTRETOISE EXT. G ROUE; More informationQuantity required : 1 |
||||||
|
16 |
AP8125638 - ENTRETOISE EXT. D ROUE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/5/img/72185.jpg)
17 |
GEARBOX SELECTOR BALL JOINT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI ET APRILIA -AP8210007- More informationQuantity required : 1 |
||||||
|
18 |
AP8113628 - DISQUE FREIN ARRIERE More informationQuantity required : 1 |
||||||
|
19 |
AP8113510 - TUYAU FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
20 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
21 |
AP8113004 - RONDELLE More informationQuantity required : 4 |
||||||
|
22 |
AP8121852 - RONDELLE More informationQuantity required : 1 |
||||||
|
23 |
AP8132635 - LEVIER DE FREIN AR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/9/img/46729.jpg)
24 |
AP8121147 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/6/img/71456.jpg)
25 |
BRAKE LEVER PIN "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO, 125 AF1 FUTURA -AP8121284- More informationQuantity required : 1 |
||||||
|
26 |
AP8121835 - PIVOT FIX. RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/6/img/46726.jpg)
27 |
AP8121118 - RESS.HEL.CYL.TRACT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/4/6/5/img/56465.jpg)
29 |
TANK FOR REAR BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART"APRILIA 50-125 RS, PEGASO, AF1, TUONO, 50 RALLY, MX, SX, RX -AP8213446- More informationQuantity required : 1 |
||||||
|
30 |
AP8120807 - PATIN G-CHA?NE D BRI More informationQuantity required : 1 |
||||||
|
31 |
AP8120806 - PATIN G-CHA?NE G BRI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/9/8/img/47498.jpg)
32 |
STOP LIGHT SWITCH - ON REAR MASTER CYLINDER "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, SX, MX, TUONO -AP8124479- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/2/img/71482.jpg)
33 |
AP8121697 - RESSORT A GODET More informationQuantity required : 1 |
||||||
|
34 |
AP8125647 - JOINT SPI ROUE ARRIERE; More informationQuantity required : 1 |
||||||
|
35 |
AP8133570 - PINCE FREIN AR NOIR; More informationQuantity required : 1 |
||||||
|
36 |
AP8113651 - PLAQUETTES-PAIRE More informationQuantity required : 1 |
||||||
|
37 |
AP8113198 - KIT REVISION PINCE More informationQuantity required : 1 |
||||||
|
39 |
AP8113117 - COUVERCLE PINCE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/5/img/71285.jpg)
40 |
SCREW - DRAIN SCREW "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER/MAXISCOOTER APRILIA -AP8113006- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/7/2/3/img/45723.jpg)
41 |
CHAIN WITH CONNECTING LINK "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO -AP8107110- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/9/9/8/img/56998.jpg)
43 |
AP8221074 - POUS M-CYL. FREIN AR More informationQuantity required : 1 |
||||||
|
45 |
AP8152060 - VIS More informationQuantity required : 6 |
