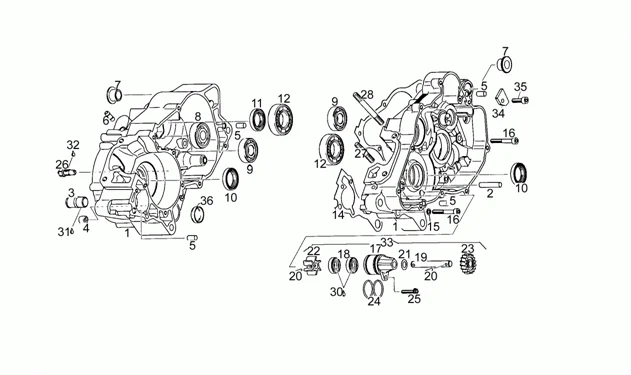

Vehicle Exploded View - APRILIA RS 125 1995-1995
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Moteur : 4 CARTER MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/268/RS_125_1995-1995_4.PNG)
1 |
AP0296199 - CARTER MOTORE CPL. More informationQuantity required : 1 |
||||||
|
2 |
AP0229380 - GOUPILLE More informationQuantity required : 1 |
||||||
|
3 |
AP0224260 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/8/2/5/9/img/38259.jpg)
4 |
2R000066 - CAGE A ROULEAUX More informationQuantity required : 1 |
||||||
|
5 |
AP0632010 - GOUPILLE More informationQuantity required : 4 |
||||||
|
6 |
2R000040 - RACCORD More informationQuantity required : 1 |
||||||
|
7 |
AP0247555 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/5/2/6/img/43526.jpg)
8 |
BEARING 6302 "PIAGGIO GENUINE PART" APRILIA 125 AF1, CLASSIC, LEONARDO, PEGASO, RS, RX, SX, MX -AP0232291- More informationQuantity required : 1 |
||||||
|
9 |
AP0932032 - ROULEMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/5/0/7/img/43507.jpg)
10 |
SEAL RING GASKET- FOR CRANSHAFT (28X38X7) "PIAGGIO GENUINE PART" APRILIA 125 RS, SX, RX, AF1, CLASSIC, PEGASO -AP0230425- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/7/4/img/44574.jpg)
11 |
GASKET RING- GEARBOX (25X38X7) "PIAGGIO GENUINE PART" APRILIA 125 RS, MX, CLASSIC, PEGASO -AP0930675- More informationQuantity required : 1 |
||||||
|
12 |
AP0232765 - ROULEMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/4/4/3/img/44443.jpg)
14 |
HALF-CRANKCASE GASKET "PIAGGIO GENUINE PART" APRILIA 125 RS, CLASSIC, TUONO, MX, SX, RX -AP0650131- More informationQuantity required : 1 |
||||||
|
15 |
AP0230415 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
16 |
AP0241821 - VIS More informationQuantity required : 10 |
||||||
|
17 |
AP0222182 - CORPS POMPE EAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/5/0/0/img/43500.jpg)
18 |
SEAL RING GASKET- FOR WATER PUMP (10X26X7) "PIAGGIO GENUINE PART" APRILIA 125 SX, RX, MX, CLASSIC, AF1, LEONARDO, SCARABEO, 650 PEGASO -AP0230195- More informationQuantity required : 2 |
||||||
|
19 |
AP0237912 - ARBRE POMPE A EAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/4/8/8/img/43488.jpg)
20 |
AP0229280 - GOUPILLE More informationQuantity required : 2 |
||||||
|
21 |
AP0827590 - RACLEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/4/3/8/img/43438.jpg)
22 |
IGNITION ROTOR "PIAGGIO GENUINE PART" 125 RS, SX, RX, MX, PEGASO, CLASSIC, AF1 -AP0222195- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/5/7/7/img/43577.jpg)
23 |
WATER PUMP GEAR (16 TEETH) "PIAGGIO GENUINE PART" APRILIA 125 RS, RX, SX, MX, CLASSIC -AP0234415- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/2/7/1/img/44271.jpg)
24 |
O'RING GASKET FOR WATER PUMP "PIAGGIO GENUINE PART" APRILIA 125 AF1, CLASSIC, PEGASO, RS, TUONO, RX, SX -AP0430060- More informationQuantity required : 2 |
||||||
|
25 |
AP0241270 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
26 |
AP0640190 - VIS More informationQuantity required : 1 |
||||||
|
27 |
AP0241381 - VIS SANS T?TE More informationQuantity required : 2 |
||||||
|
28 |
AP0940786 - VIS SANS T?TE More informationQuantity required : 2 |
||||||
|
30 |
AP0897161 - MOLYKOTE More informationQuantity required : 1 |
||||||
|
31 |
AP0899788 - LOCTITE VERTE More informationQuantity required : 1 |
||||||
|
32 |
AP0297385 - SILASTIC More informationQuantity required : 1 |
||||||
|
33 |
WATER PUMP "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, RX, SX -AP0293417- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/2/4/img/44524.jpg)
35 |
AP0840880 - VIS More informationQuantity required : 1 |
||||||
|
36 |
AP0227325 - BOUCHON More informationQuantity required : 1 |
