Vehicle Exploded View - APRILIA RS 125 1995-1995
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

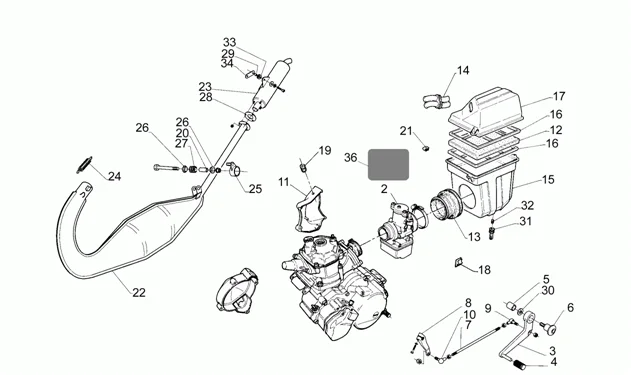

Chassis : 13 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/268/RS_125_1995-1995_13.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/5/0/4/img/45504.jpg)
3 |
GEARBOX SELECTOR "PIAGGIO GENUINE PART" APRILIA 125 RS 1995>2010, TUONO 2000>2003, AF1 -AP8106013- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/3/img/72273.jpg)
4 |
GEARBOX SELECTOR RUBBER "PIAGGIO GENUINE PART" APRILIA 50-125 RS, CLASSIC, 125 FUTURA, 600-650 PEGASO/MOTO-GUZZI 750 BREVA -AP8220189- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/9/img/46729.jpg)
5 |
AP8121147 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/6/img/71456.jpg)
6 |
BRAKE LEVER PIN "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO, 125 AF1 FUTURA -AP8121284- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/1/5/8/img/49158.jpg)
8 |
GEARBOX CONTROL CONNECTING ROD "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, CLASSIC -AP8135726- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/5/img/72185.jpg)
9 |
GEARBOX SELECTOR BALL JOINT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI ET APRILIA -AP8210007- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/8/img/71268.jpg)
10 |
GEARBOX SELECTOR BALL JOINT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA /MOTO-GUZZI -AP8110053- More informationQuantity required : 1 |
||||||
11 |
AP8106315 - CARTER PIGNON, GRIS More informationQuantity required : 1 |
||||||
|
12 |
AIR FILTER"PIAGGIO GENUINE PART" APRILIA 125 RS 1995>2010, AF1 1990>1992, TUONO 2003>2004 -AP81020800P- More informationQuantity required : 1 |
||||||
|
12 |
AIR FILTER"PIAGGIO GENUINE PART" APRILIA 125 RS 1995>2010, AF1 1990>1992, TUONO 2003>2004 -AP81020800P- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/4/1/img/46641.jpg)
13 |
JOINING SLEEVE- FROM CARB TO AIRBOX "PIAGGIO GENUINE PART" APRILIA 125 RS 1995>1998 -AP8120783- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/3/4/img/46634.JPG)
14 |
AP8120748 - MANCHON D'ASPIRATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/4/0/3/2/img/54032.jpg)
15 |
FILTER HOUSING BASE "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO -AP8178561- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/6/4/7/img/48647.JPG)
16 |
AP8131121 - GRILLE FERMET.FILTRE; More informationQuantity required : 2 |
||||||
|
17 |
AP8168042 - COUVERCLE CORPS FILTRE; More informationQuantity required : 1 |
||||||
|
18 |
AP8120708 - GUIDE-CABLE ADH.NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
19 |
AP8120405 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/0/img/46720.jpg)
20 |
AP8121058 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
21 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 5 |
||||||
|
22 |
AP8119375 - POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/4/img/45094.jpg)
24 |
AP8101259 - RESS.HEL.CYL.TRACT. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/4/img/46724.jpg)
24 |
EXHAUST SPRING "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, PEGASO, AF1 -AP8121091- More informationQuantity required : 2 |
||||||
|
25 |
AP8135289 - SUPPORT CENTRAL POT; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/6/img/45096.jpg)
26 |
AP8101284 - RONDELLE More informationQuantity required : 2 |
||||||
|
27 |
AP8101285 - SILENTBLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/5/8/img/46658.jpg)
28 |
AP8120812 - JOINT SILENCIEUX More informationQuantity required : 1 |
||||||
|
29 |
AP8121716 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/2/img/71482.jpg)
30 |
AP8121697 - RESSORT A GODET More informationQuantity required : 1 |
||||||
|
33 |
AP8120638 - SILENTBLOC More informationQuantity required : 1 |
