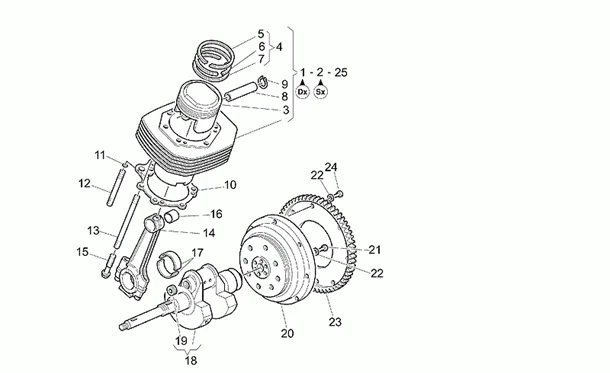

Vehicle Exploded View - MOTO-GUZZI QUOTA 1100 Quota ES 1100 1998-2002

	P2R reference	164705
	Maker reference	GU03060130

GU03060130 - CYLINDRE AV.PISTON

	P2R reference	130522
	Maker reference	GU30060660

GU30060660 - ENSEMBLE DE SEGMENTS

	P2R reference	130524
	Maker reference	GU30060760

GU30060760 - SEGMENT D'ETANCHEITE

	P2R reference	130526
	Maker reference	GU30060960

GU30060960 - SEGMENT D'ETANCHEITE

	P2R reference	157738
	Maker reference	GU30061060

GU30061060 - SEGMENT D'ETANCHEITE

	P2R reference	130528
	Maker reference	GU30061241

GU30061241 - AXE

	P2R reference	132149
	Maker reference	GU90351038

GU90351038 - BAGUE DE BUTEE

	P2R reference	129182
	Maker reference	GU14020865

GU14020865 - JOINT

	P2R reference	125837
	Maker reference	GU90706094

ROCKER AXLE O'RING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI (2 VALVES ENGINE) -GU90706094

	P2R reference	129112
	Maker reference	GU12021800

GU12021800 - VIS SANS TETE

	P2R reference	99760
	Maker reference	976031

976031 - PRIGIONIERO TESTA M10X215

	P2R reference	101380
	Maker reference	GU01061532

GU01061532 - BIELLA CPL.

	P2R reference	101382
	Maker reference	GU01062230

GU01062230 - VITE BIELLA

	P2R reference	132272
	Maker reference	GU91112128

GU91112128 - BAGUE

	P2R reference	101381
	Maker reference	GU01062030

GU01062030 - SEMIGUSCIO BRONZINA

	P2R reference	131813
	Maker reference	GU37062006

GU37062006 - DEMI-COUSSINET 0,254 MM

	P2R reference	131814
	Maker reference	GU37062007

GU37062007 - DEMI-COUSSINET 0,508 MM

	P2R reference	157220
	Maker reference	GU37062008

GU37062008 - DEMI-COUSSINET 0,762 MM

	P2R reference	130535
	Maker reference	GU30064161

GU30064161 - ARBRE MOTEUR

	P2R reference	101383
	Maker reference	GU01064131

GU01064131 - ALBERO MOTORE CPL.

	P2R reference	131815
	Maker reference	GU37065405

CRANKSHAFT MACHINING PLUG "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, GRISO, QUOTA, V11, 1200 NORGE, BREVA, SPORT -GU37065405

	P2R reference	164706
	Maker reference	GU30067025

GU30067025 - VOLANT

	P2R reference	67332
	Maker reference	597150

SCREW - (8X25) FOR CALIPER OR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -597150-

	P2R reference	73448
	Maker reference	GU14615901

WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901-

	P2R reference	164707
	Maker reference	GU30067925

GU30067925 - COURONNE

	P2R reference	132894
	Maker reference	GU98054420

GU98054420 - VIS M8X20

	P2R reference	164708
	Maker reference	GU30060162

GU30060162 - CYLINDRE AV.PISTON
