Vehicle Exploded View - MOTO-GUZZI QUOTA 1100 Quota ES 1100 1998-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

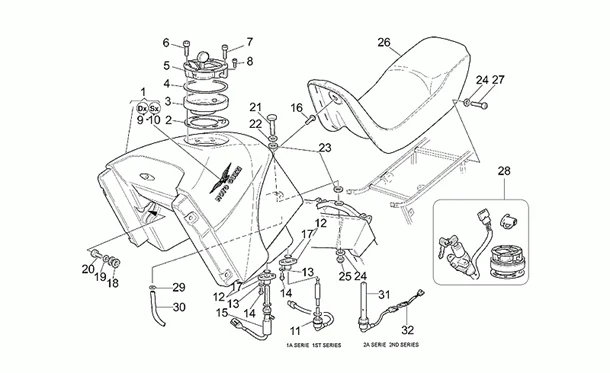

Chassis : 33.17 RESERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/921/Quota_ES_1100_1998-2002_33.17.png)
1 |
GU30100224 - RESERVOIR BRUT More informationQuantity required : 1 |
||||||
|
1 |
GU89000295 - RESERVOIR ROUGE More informationQuantity required : 1 |
||||||
|
1 |
GU89000294 - SERBATOIO NERO USA (ANNULL) More informationQuantity required : 1 |
||||||
|
1 |
GU89000276 - RESERVOIR ESS. SABLE/MARRON More informationQuantity required : 1 |
||||||
|
1 |
GU89000275 - RESERVOIR ESS.SABLE/BLEU More informationQuantity required : 1 |
||||||
|
1 |
GU89000274 - RESERVOIR ESS. SABLE/JAUNE More informationQuantity required : 1 |
||||||
|
2 |
GU02102400 - JOINT More informationQuantity required : 1 |
||||||
|
3 |
GU02102300 - FLANGIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/0/img/71420.jpg)
4 |
FUEL CAP SEAL GASKET "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, 1000 CAPONORD, RSV-2/MOTO-GUZZI 750 BREVA, DAYTONA, 1100 V11, SPORT -AP8120893- More informationQuantity required : 1 |
||||||
|
5 |
GU01103960 - TAPPO SERBATOIO More informationQuantity required : 1 |
||||||
|
6 |
GU98620230 - VIS M5X30 More informationQuantity required : 3 |
||||||
|
7 |
GU98622210 - VIS M5X10 More informationQuantity required : 3 |
||||||
|
8 |
GU98622215 - VIS More informationQuantity required : 1 |
||||||
|
9 |
GU01917800 - DECALCO DX "MOTO GUZZI" More informationQuantity required : 1 |
||||||
|
10 |
GU01917900 - "DECALCO G.""MOTO GUZZI""" More informationQuantity required : 1 |
||||||
|
11 |
GU30103030 - SONDE NIVEAU ESSENCE More informationQuantity required : 1 |
||||||
|
12 |
GU01101830 - FLANGIA More informationQuantity required : 3 |
||||||
|
12 |
GU02101800 - BRIDE More informationQuantity required : 3 |
||||||
|
13 |
GU29217960 - RONDELLE 5,9X3X0,8 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/6/1/img/132961.jpg)
14 |
GU98230510 - VIS M5X10 More informationQuantity required : 6 |
||||||
|
15 |
GU03105300 - SOUPAPE CARBURANT More informationQuantity required : 2 |
||||||
|
16 |
GU30103225 - VIS More informationQuantity required : 1 |
||||||
|
17 |
GU90706116 - JOINT TORIQUE More informationQuantity required : 3 |
||||||
|
17 |
GU90706171 - JOINT TORIQUE More informationQuantity required : 3 |
||||||
|
18 |
GU91551166 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
19 |
GU95100256 - RONDELLE More informationQuantity required : 2 |
||||||
|
20 |
GU98054412 - VIS More informationQuantity required : 2 |
||||||
|
21 |
GU98052360 - VIS M6X60 More informationQuantity required : 1 |
||||||
|
21 |
GU98052355 - VIS More informationQuantity required : 1 |
||||||
|
22 |
GU95100123 - RONDELLE More informationQuantity required : 1 |
||||||
|
22 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 1 |
||||||
|
23 |
GU93110082 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
23 |
GU93110065 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
24 |
GU95000206 - RONDELLE More informationQuantity required : 4 |
||||||
|
25 |
GU92630106 - ECROU M6X1 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/1/img/65941.jpg)
25 |
219277 - BOULON More informationQuantity required : 2 |
||||||
|
26 |
GU30460525 - SELLE More informationQuantity required : 1 |
||||||
|
27 |
GU98230816 - VIS More informationQuantity required : 2 |
||||||
|
28 |
GU30736825 - KIT SERRURE More informationQuantity required : 1 |
||||||
|
29 |
GU61108500 - COLLIER D9 More informationQuantity required : 1 |
||||||
|
30 |
GU00823944050 - TUBO GOMMA 5X9 SAE30R7 More informationQuantity required : 1 |
||||||
|
31 |
GU01103000 - SONDE NIVEAU ESSENCE More informationQuantity required : 1 |
||||||
|
32 |
GU30759725 - ADAPTATEUR More informationQuantity required : 1 |
