Vehicle Exploded View - MOTO-GUZZI QUOTA 1100 Quota ES 1100 1998-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

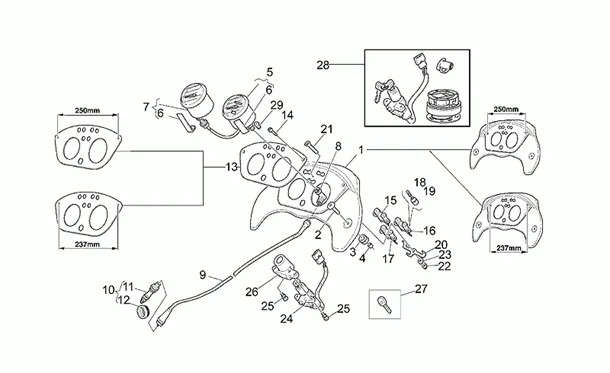

Chassis : 33.04 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/921/Quota_ES_1100_1998-2002_33.04.png)
1 |
GU30766226 - SUPPORT TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
2 |
GU98370616 - VIS M6X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
3 |
GU91551086 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
4 |
GU91180607 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
5 |
GU30761525 - COMPTEUR KILOMETRIQUE More informationQuantity required : 1 |
||||||
|
5 |
GU30762425 - COMPTEUR KILOMETRIQUE More informationQuantity required : 1 |
||||||
|
6 |
GU29767860 - BRIDE More informationQuantity required : 2 |
||||||
|
7 |
GU30767225 - COMPTE-TOURS ELECTRONIQUE NOIR More informationQuantity required : 1 |
||||||
|
7 |
GU02767200 - ELECTRONIC REVOLUTION COUNTER More informationQuantity required : 1 |
||||||
|
8 |
GU17768360 - RENVOI 90° More informationQuantity required : 1 |
||||||
|
9 |
GU28760410 - TRANSMISSION TACHYMETRE More informationQuantity required : 1 |
||||||
|
10 |
GU14762510 - RENVOI Z5/11 More informationQuantity required : 1 |
||||||
|
13 |
GU30764125 - PLAQUE More informationQuantity required : 1 |
||||||
|
13 |
GU30764126 - PLAQUE More informationQuantity required : 1 |
||||||
|
14 |
GU98370515 - VIS More informationQuantity required : 2 |
||||||
|
15 |
GU30758325 - P.TE-TEMOINS RESERVE/POINT MOR More informationQuantity required : 1 |
||||||
|
16 |
GU30758125 - PORTE-TEMOINS HUILE/GENERATEUR More informationQuantity required : 1 |
||||||
|
17 |
GU30758025 - PORTE-TEMOINS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
18 |
LIGHT BULB - INDICATOR LIGHT 12V-1/2W "PIAGGIO GENUINE PART" BEVERLY, X7, LIBERTY, ZIP, VESPA GTS/MOTO-GUZZI -164634- More informationQuantity required : 6 |
||||||
|
19 |
GU02768600 - PORTALAMPADA More informationQuantity required : 6 |
||||||
|
20 |
GU30763825 - BRIDE More informationQuantity required : 1 |
||||||
|
21 |
GU98250535 - VIS More informationQuantity required : 1 |
||||||
|
22 |
GU92660005 - ECROU BRIDE More informationQuantity required : 1 |
||||||
|
23 |
GU92602205 - ECROU More informationQuantity required : 1 |
||||||
|
24 |
GU01782500 - BLOCCHETTO AVVIAMENTO-BLOCC. More informationQuantity required : 1 |
||||||
|
25 |
GU97260425 - VIS More informationQuantity required : 4 |
||||||
|
26 |
GU30783630 - PROTECTION More informationQuantity required : 1 |
||||||
|
27 |
GU30735500 - CLE PAS CANTEE BRUT More informationQuantity required : 1 |
||||||
|
28 |
GU30736825 - KIT SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/9/img/65759.jpg)
29 |
LIGHT BULB 12V 4W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -163015- More informationQuantity required : 2 |
