Vehicle Exploded View - MOTO-GUZZI QUOTA 1100 Quota ES 1100 1998-2002
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

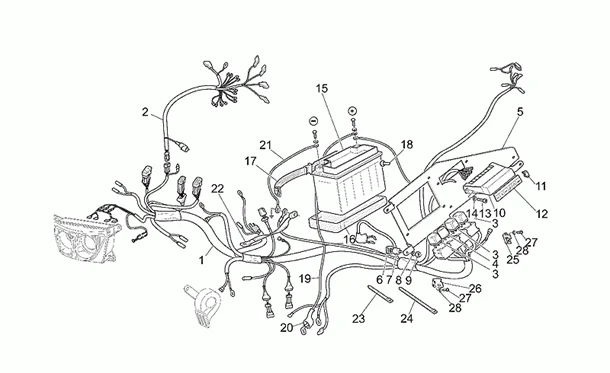

Chassis : 33.10 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/921/Quota_ES_1100_1998-2002_33.10.png)
1 |
GU30747125 - CIRCUIT ELECTRIQUE More informationQuantity required : 1 |
||||||
|
2 |
GU30747225 - CABLAGE TABLEAU DE BORD More informationQuantity required : 1 |
||||||
|
3 |
GU30732560 - RELAIS SIEMENS A302/B1008 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/9/img/73449.jpg)
4 |
FLASHER UNIT (FOR 21W BULB) "PIAGGIO GENUINE PART" COMMON TO ALL MOTO-GUZZI RANGE -GU17750520- More informationQuantity required : 1 |
||||||
|
5 |
GU30746325 - PLAQUE More informationQuantity required : 1 |
||||||
|
6 |
GU28576590 - CLIP More informationQuantity required : 4 |
||||||
|
7 |
GU29737960 - BLOC More informationQuantity required : 4 |
||||||
|
8 |
GU95000206 - RONDELLE More informationQuantity required : 4 |
||||||
|
9 |
GU92602206 - ECROU More informationQuantity required : 4 |
||||||
|
10 |
GU37743005 - BOITE A FUSIBLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
11 |
FUSE 15 AMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -290860- More informationQuantity required : 6 |
||||||
|
12 |
GU02945000 - DECALCO SCHEMA FUSIBILI More informationQuantity required : 1 |
||||||
|
13 |
GU98622210 - VIS M5X10 More informationQuantity required : 2 |
||||||
|
14 |
GU95000205 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/4/0/img/101940.jpg)
15 |
BATTERY 12V 13 AH "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA 2003>2009, 1100 SPORT 1996>1999, V11 1999>2005, 1000 V10 1997>1999, QUOTA 1998>2002 -GU01704501- More informationQuantity required : 1 |
||||||
|
16 |
GU30707030 - SUPPORT BATTERIE More informationQuantity required : 1 |
||||||
|
17 |
GU30704830 - ELASTIQUE FIX.BATTERIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/6/8/0/img/129680.jpg)
18 |
GU19705900 - TAMPON More informationQuantity required : 2 |
||||||
|
19 |
GU30748430 - CABLAGE More informationQuantity required : 1 |
||||||
|
20 |
GU19707100 - CAPUCHON More informationQuantity required : 1 |
||||||
|
21 |
GU19748000 - CABLE BATTERIE More informationQuantity required : 1 |
||||||
|
22 |
GU02747901 - CABLAGGIO MASSA-BATTERIA More informationQuantity required : 1 |
||||||
|
23 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/0/4/img/132604.jpg)
24 |
GU93304390 - COLLIER More informationQuantity required : 1 |
||||||
|
25 |
GU304771015 - BRIDE DROITE More informationQuantity required : 1 |
||||||
|
26 |
GU30477200 - PLAQUE G. More informationQuantity required : 1 |
||||||
|
27 |
GU98622310 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
28 |
AP8152105 - RONDELLE More informationQuantity required : 2 |
