Vehicle Exploded View - APRILIA QUASAR 180 2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

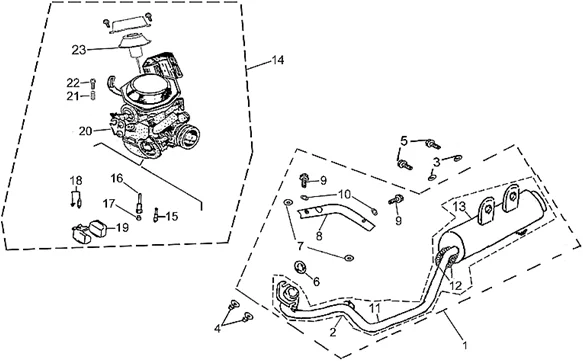

Chassis : 28.15 GROUPE ECHAPPEMENT-CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/311/Quasar_180_2004_28.15.PNG)
1 |
AP8911293 - MARMITTA CPL. More informationQuantity required : 1 |
||||||
|
4 |
AP8911015 - DADO M6 More informationQuantity required : 2 |
||||||
|
6 |
AP8910735 - GUARNIZIONE More informationQuantity required : 1 |
||||||
|
7 |
AP8911067 - GUARNIZIONE More informationQuantity required : 2 |
||||||
|
8 |
AP8910740 - PROTEZIONE MARMITTA More informationQuantity required : 1 |
||||||
|
12 |
AP8911228 - MOLLA More informationQuantity required : 2 |
||||||
|
14 |
AP8911258 - CARBURATORE CPL.D.39,5 More informationQuantity required : 1 |
||||||
|
23 |
AP8911221 - MEMBRANA A DEPRESSIONE More informationQuantity required : 1 |
