Vehicle Exploded View - APRILIA QUASAR 180 2004

Moteur : 29.10 VARIATEUR AVEC EMBRAYAGE

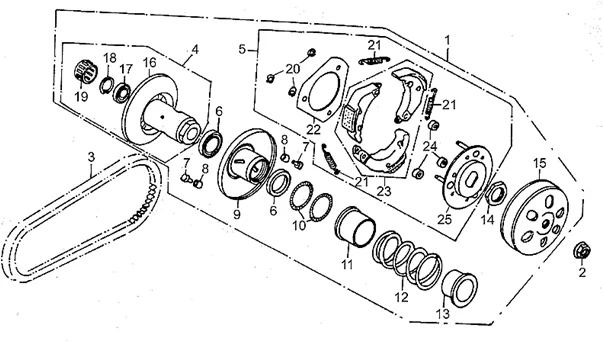

Variateur avec embrayage

Search

1

	P2R reference	61702
	Maker reference	AP8910771

AP8910771 - TRASMISSIONE SECONDARIA CPL.

More information

Quantity required : 1

2

	P2R reference	61595
	Maker reference	AP8910377

AP8910377 - DADO FLANG.M12

More information

Quantity required : 1

3

	P2R reference	61712
	Maker reference	AP8910788

AP8910788 - CINGHIA TRASMISSIONE 743X20X30

More information

Quantity required : 1

4

	P2R reference	61713
	Maker reference	AP8910789

AP8910789 - PULEGGIA SECONDARIA FISSA CPL.

More information

Quantity required : 1

5

	P2R reference
	Maker reference	AP8910772

Variateur avec embrayage

6

	P2R reference
	Maker reference	AP8911138

Joint spi

7

	P2R reference	61716
	Maker reference	AP8910792

AP8910792 - PERNO DI GUIDA

More information

Quantity required : 3

8

	P2R reference
	Maker reference	AP8910793

Rouleau de guidage

9

	P2R reference	61715
	Maker reference	AP8910791

AP8910791 - PULEGGIA SECONDARIA MOBILE

More information

Quantity required : 1

10

	P2R reference	61814
	Maker reference	AP8911035

AP8911035 - O-RING 36X2

More information

Quantity required : 2

11

	P2R reference	61718
	Maker reference	AP8910796

AP8910796 - SCODELLINO INT.PORTAMOLLA

More information

Quantity required : 1

12

	P2R reference	61717
	Maker reference	AP8910795

AP8910795 - MOLLA

More information

Quantity required : 1

13

	P2R reference	61719
	Maker reference	AP8910797

AP8910797 - SCODELLINO EST.PORTAMOLLA

More information

Quantity required : 1

14

	P2R reference	61803
	Maker reference	AP8911012

AP8911012 - DADO SPECIALE M28

More information

Quantity required : 1

15

	P2R reference	61703
	Maker reference	AP8910773

AP8910773 - CAMPANA FRIZIONE

More information

Quantity required : 1

16

	P2R reference	61714
	Maker reference	AP8910790

AP8910790 - PULEGGIA SECONDARIA FISSA

More information

Quantity required : 1

17

	P2R reference	61847
	Maker reference	AP8911117

AP8911117 - CUSCINETTO RADIALE 6902U

More information

Quantity required : 1

18

	P2R reference	61832
	Maker reference	AP8911080

AP8911080 - ANELLO DI FERMO M28

More information

Quantity required : 1

19

	P2R reference
	Maker reference	AP8911120

Cage à rouleaux

20

	P2R reference
	Maker reference	AP8910417

Joint torique

21

	P2R reference
	Maker reference	AP8910785

Ressort embrayage

22

	P2R reference	61709
	Maker reference	AP8910784

AP8910784 - PIASTRA

More information

Quantity required : 1

23

	P2R reference	61710
	Maker reference	AP8910786

AP8910786 - CEPPI FRIZIONE (3CEPPI 1SETT)

More information

Quantity required : 3

24

	P2R reference	61711
	Maker reference	AP8910787

AP8910787 - GOMMINO

More information

Quantity required : 3

25

	P2R reference	61708
	Maker reference	AP8910783

AP8910783 - PIATTO PORTACEPPI

More information

Quantity required : 1
