Vehicle Exploded View - APRILIA QUASAR 180 2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

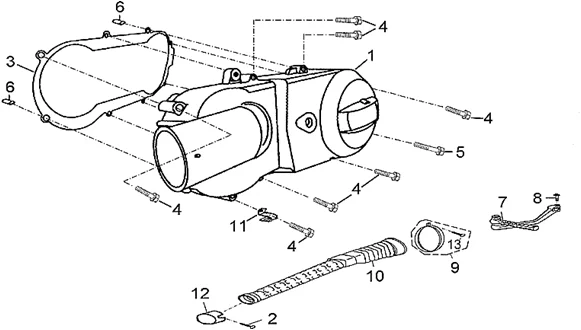

Moteur : 29.08 DEMI-CARTER G
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/311/Quasar_180_2004_29.08.PNG)
2 |
AP8910363 - VITE AUTOF.M4X16 More informationQuantity required : 1 |
||||||
|
4 |
AP8911093 - VITE TE FLANG.M6X40 More informationQuantity required : 7 |
||||||
|
5 |
AP8911101 - VITE TE FLANG.M6X100 More informationQuantity required : 1 |
||||||
|
6 |
AP8911071 - SPINA 8X14 More informationQuantity required : 2 |
||||||
|
7 |
AP8910823 - PEDALE M/M More informationQuantity required : 1 |
||||||
|
9 |
AP8911020 - FASCETTA D61 More informationQuantity required : 1 |
||||||
|
10 |
AP8910613 - CONVOGLIATORE ARIA More informationQuantity required : 1 |
||||||
|
11 |
AP8910615 - CLIP FISSAGGIO TUBO More informationQuantity required : 1 |
||||||
|
12 |
AP8910614 - TAPPO MANICOTTO More informationQuantity required : 1 |
