Vehicle Exploded View - APRILIA QUASAR 180 2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

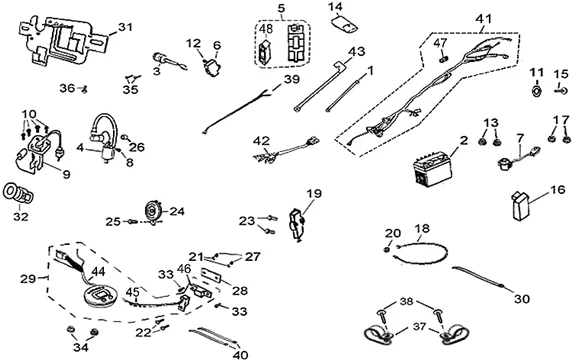

Chassis : 28.34 CIRCUIT ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/311/Quasar_180_2004_28.34.PNG)
4 |
AP8910833 - BOBINA CPL. More informationQuantity required : 1 |
||||||
|
6 |
AP8911481 - REGOLATORE DI TENSIONE More informationQuantity required : 1 |
||||||
|
7 |
AP8910880 - RELE' AVVIAMENTO More informationQuantity required : 1 |
||||||
|
9 |
AP8911327 - SONDA LIVELLO BENZ. More informationQuantity required : 1 |
||||||
|
11 |
AP8910379 - ROSETTA PIANA More informationQuantity required : 1 |
||||||
|
14 |
AP8910939 - TROUSSE ATTREZZI More informationQuantity required : 1 |
||||||
|
15 |
AP8910354 - VITE AUTOF.M5X12 More informationQuantity required : 1 |
||||||
|
18 |
AP8911244 - INTERRUTTORE FOLLE More informationQuantity required : 1 |
||||||
|
19 |
AP8910867 - INTERRUTTORE STOP MOTORE More informationQuantity required : 1 |
||||||
|
22 |
AP8911044 - VITE TE FLANG.M3X10 More informationQuantity required : 2 |
||||||
|
24 |
AP8910879 - CLAXON More informationQuantity required : 1 |
||||||
|
29 |
AP8911279 - CRUSCOTTO CPL. More informationQuantity required : 1 |
||||||
|
30 |
AP8911021 - FASCETTA More informationQuantity required : 1 |
||||||
|
35 |
AP8910354 - VITE AUTOF.M5X12 More informationQuantity required : 2 |
||||||
|
40 |
AP8910324 - FASCETTA ALT-200M-B More informationQuantity required : 2 |
||||||
|
44 |
AP8911278 - CRUSCOTTO More informationQuantity required : 1 |
||||||
|
46 |
AP8910874 - SENSORE More informationQuantity required : 1 |
||||||
|
47 |
AP8911146 - FUSIBILE 15A More informationQuantity required : 1 |
