Vehicle Exploded View - MOTO-GUZZI NORGE 1200 IE 8V 2010-2015-2016 USA CN
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

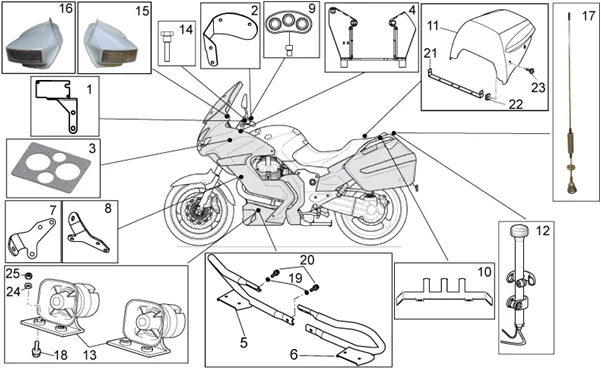

Chassis : 33.78 POLICE SPECIAL EQUIPMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/507/Norge_1200_IE_8V_2010-2015-2016_USA_CN_33.78.PNG)
1 |
2B000540 - STAFFA SX PORTA PULSANTI More informationQuantity required : 1 |
|||||||||
|
1 |
977979 - PIASTRA SUPP. PULSANTI RADIO CON PI More informationQuantity required : 1 |
|||||||||
|
2 |
884267 - STAFFA PORTA PULSANTI More informationQuantity required : 1 |
|||||||||
|
3 |
884246 - PIASTRA PORTARADIO E GPS More informationQuantity required : 1 |
|||||||||
|
4 |
884221 - SUPPORTO RADIO MANUBRIO CON PI More informationQuantity required : 1 |
|||||||||
|
5 |
884182 - TUBO PARAGAMBE DX CON PI More informationQuantity required : 1 |
|||||||||
|
6 |
884179 - TUBO PARAGAMBE SX CON PI More informationQuantity required : 1 |
|||||||||
|
7 |
884183 - PIASTRA TELAIO SX More informationQuantity required : 1 |
|||||||||
|
8 |
884184 - PIASTRA TELAIO DX More informationQuantity required : 1 |
|||||||||
|
9 |
884241 - (*)PULSANTIERA More informationQuantity required : 1 |
|||||||||
|
10 |
884270 - STAFFA POSTERIORE CODINO More informationQuantity required : 1 |
|||||||||
|
11 |
88421900XA2 - COPRICODONE NORGE PA AZZ LIBIA More informationQuantity required : 1 |
|||||||||
|
11 |
884219 - (*)COPRICODONE NORGE 8V PA GREZZO More informationQuantity required : 1 |
|||||||||
|
11 |
88421900BM - (*)COPRICODONE NORGE 8V PA VERN More informationQuantity required : 1 |
|||||||||
|
12 |
884240 - (*)ASTA STROBO NORGE A More informationQuantity required : 1 |
|||||||||
|
13 |
884237 - (*)KIT SIRENA CITYPOL 115 More informationQuantity required : 1 |
|||||||||
|
14 |
883486 - DADO A COLONNA More informationQuantity required : 2 |
|||||||||
|
15 |
884238 - (*)FARETTO SX NORGE A More informationQuantity required : 1 |
|||||||||
|
15 |
88423900YM2 - OPTIQUE DROITE More informationQuantity required : 1 |
|||||||||
|
16 |
88423800YM2 - OPTIQUE G. More informationQuantity required : 1 |
|||||||||
|
16 |
884239 - (*)FARETTO DX NORGE A More informationQuantity required : 1 |
|||||||||
|
17 |
884271 - (*)ANTENNA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
18 |
AP8152280 - VIS BRIDE More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
19 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
20 |
AP8152287 - VIS BRIDE More informationQuantity required : 6 |
|||||||||
|
21 |
977993 - FISS ANT CODONE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
22 |
248419 - PLAQUETTE PLASTIQUE More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
23 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
23 |
2B014101 - INOX HEXAGON COCKET SCREWS M5X12 More informationQuantity required : 4 |
|||||||||
|
24 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
25 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 4 |
|||||||||
