Vehicle Exploded View - MOTO-GUZZI NORGE 1200 IE 8V 2010-2015-2016 USA CN
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

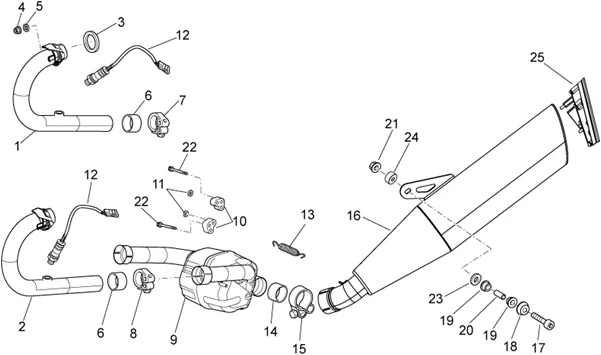

Chassis : 33.38 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/507/Norge_1200_IE_8V_2010-2015-2016_USA_CN_33.38.PNG)
1 |
887214 - TUBO DI SCARICO DX MICROPALINATO More informationQuantity required : 1 |
||||||
|
2 |
887215 - TUBO DI SCARICO SX MICROPALINATO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/4/5/img/99845.jpg)
3 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 SPORT, STELVIO, GRISO, NORGE, 1400 CALIFORNIA, ELDORADO -976376 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/0/img/73550.jpg)
4 |
NUT - CAP NUT M8 FOR EXHAUST OR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU92660021 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
5 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/1/img/73431.jpg)
6 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO/MOTO-GUZZI 850-1200 BREVA, NORGE, 940 BELLAGIO -GU05121630 More informationQuantity required : 2 |
||||||
|
7 |
976522 - FASCETTA STRINGITUBO DX PER COMPENSATORE More informationQuantity required : 4 |
||||||
|
8 |
976523 - FASCETTA STRINGITUBO SX PER COMPENSATORE More informationQuantity required : 2 |
||||||
|
9 |
887097 - COMPENSATORE USA NORGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/4/img/73434.jpg)
10 |
SILENTBLOC FOR EXHAUST "PIAGGIO GENUINE PART" MOTO GUZZI 850-1200 NORGE, BREVA, 940 BELLAGIO, 1200 SPORT/APRILIA 1200 CAPONORD, 850 MANA -GU05124230 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/1/img/73541.jpg)
11 |
GU90274008 - RONDELLE POUR ARBRES D8 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/9/img/67299.jpg)
12 |
LAMBDA SENSOR "PIAGGIO GENUINE PART" 50 LIBERTY 3V 2015> -584344 More informationQuantity required : 2 |
||||||
|
13 |
AP8121170 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/3/6/img/73436.jpg)
14 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4, TUONO/MOTO-GUZZI BREVA, GRISO, NORGE, STELVIO -GU05128230 More informationQuantity required : 1 |
||||||
|
15 |
976521 - FASCETTA STRIGITUBO PER SILENZIATORE More informationQuantity required : 1 |
||||||
|
16 |
8835411 - SILENZIATORE NORGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/6/1/img/133161.jpg)
17 |
GU98680445 - VIS M8X45 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/8/img/71698.jpg)
18 |
BUSH/WASHER FASTENING EXHAUST "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -AP8134378 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/5/img/71745.jpg)
19 |
AP8144071 - CAOUTCHOUC POT More informationQuantity required : 2 |
||||||
|
20 |
883079 - DISTANZIALE 8,5X11,9X25,5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/3/3/img/132533.jpg)
21 |
GU92650138 - ECROU M8X1,25 More informationQuantity required : 1 |
||||||
|
22 |
GU05124330 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/9/img/132669.jpg)
23 |
GU95005312 - RONDELLE 8,5X24X2 More informationQuantity required : 1 |
||||||
|
24 |
883843 - *DISTANZIALE More informationQuantity required : 1 |
||||||
|
25 |
884352 - FONDELLO COMPLETO More informationQuantity required : 1 |
