Vehicle Exploded View - MOTO-GUZZI NORGE 1200 IE 8V 2010-2015-2016 USA CN
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

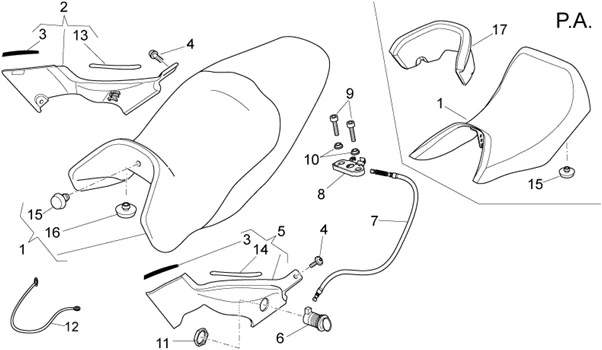

Chassis : 33.23 SELLE-CARROSSERIE CENT.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/507/Norge_1200_IE_8V_2010-2015-2016_USA_CN_33.23.PNG)
1 |
978123 - SELLA NORGE PA CON PI More informationQuantity required : 1 |
||||||
|
1 |
883824 - SELLA BIPOSTO More informationQuantity required : 1 |
||||||
|
2 |
GU05570230 - PANNEAU LATERAL DROIT BRUT More informationQuantity required : 1 |
||||||
|
2 |
GU0557023000XE4 - FLANC DRT. More informationQuantity required : 1 |
||||||
|
2 |
GU0557023000XN2 - FLANC D, NOIR More informationQuantity required : 1 |
||||||
|
2 |
GU0557023000YM2 - AILE D More informationQuantity required : 1 |
||||||
|
2 |
GU05570230BM - AILE D, BLANC More informationQuantity required : 1 |
||||||
|
2 |
GU05570230F2 - VIS More informationQuantity required : 1 |
||||||
|
3 |
890517 - JOINT CONVOYEUR G More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
4 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339 More informationQuantity required : 2 |
||||||
|
5 |
883496 - FIANCATINA SX GREZZA More informationQuantity required : 1 |
||||||
|
5 |
88349600BM - FIANCATINA SX BIANCO More informationQuantity required : 1 |
||||||
|
5 |
88349600F2 - FIANCATINA SX GRIGIO EXCALIBUR More informationQuantity required : 1 |
||||||
|
5 |
88349600XE4 - FIANCATINA SX SILVER CROWD More informationQuantity required : 1 |
||||||
|
5 |
88349600XN2 - FIANCATINA SX NERO COMPETITION More informationQuantity required : 1 |
||||||
|
5 |
88349600YM2 - FIANCATINA SX BEIGE SABBIA More informationQuantity required : 1 |
||||||
|
6 |
GU05466830 - SERRURE SELLE More informationQuantity required : 1 |
||||||
|
7 |
AP8102914 - CABLE SERRURE More informationQuantity required : 1 |
||||||
|
8 |
AP8102913 - PL.FIX.SELLE PASS. More informationQuantity required : 1 |
||||||
|
9 |
GU98370625 - VIS M6X25 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
10 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/4/img/71184.jpg)
11 |
AP8102523 - ECROU SERRURE More informationQuantity required : 1 |
||||||
|
12 |
AP8102502 - CABLE ACCROCHAGE CASQUE; More informationQuantity required : 1 |
||||||
|
13 |
GU05573830 - DECALCO PROTECT. FLANC DTE More informationQuantity required : 1 |
||||||
|
14 |
GU05573831 - DECALCO PROTECT. FLANC GCHE More informationQuantity required : 1 |
||||||
|
15 |
GU32461810 - CAOUTCHOUC APPUI SELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/9/0/img/71590.jpg)
16 |
AP8126702 - CAOUTCHOUC APPUI SELLE; More informationQuantity required : 10 |
||||||
|
17 |
978074 - COPRISERBATOIO More informationQuantity required : 1 |
