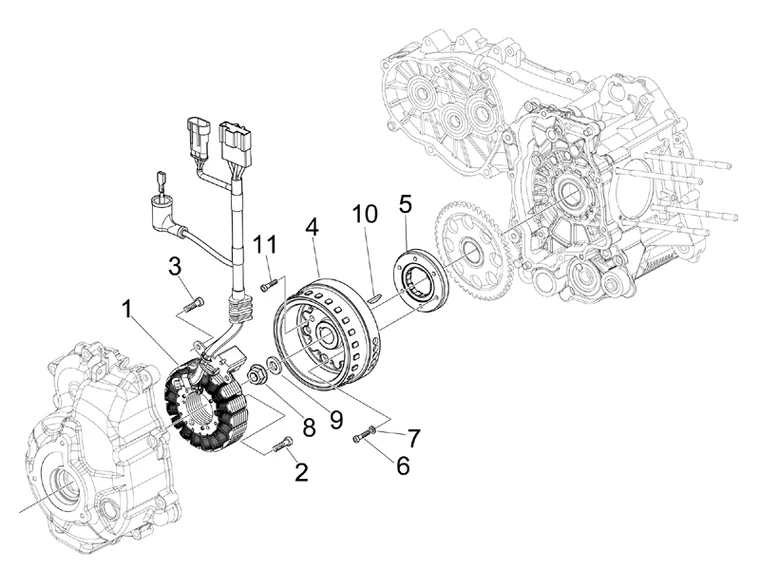

Vehicle Exploded View - GILERA NEXUS 300 ie E3 2008 GILERA

Moteur : 01.21 VOLANT MAGNETIQUE
Volant magnetique
Search
IGNITION STATOR "PIAGGIO GENUINE PART" 125 MP3, X7, VESPA GTS, BEVERLY/GILERA 125 NEXUS/APRILIA 125 SR MAX (MOTEUR INJECTION) -58070R-

1
P2R reference P2R reference 67182
Maker reference Maker reference 58070R

IGNITION STATOR "PIAGGIO GENUINE PART" 125 MP3, X7, VESPA GTS, BEVERLY/GILERA 125 NEXUS/APRILIA 125 SR MAX (MOTEUR INJECTION) -58070R-

More information

Quantity required : 1
597564 - VIS

2
P2R reference P2R reference 67347
Maker reference Maker reference 597564

597564 - VIS

More information

Quantity required : 3
1A003111 - VIS M5X10

3
P2R reference P2R reference 109024
Maker reference Maker reference 1A003111

1A003111 - VIS M5X10

More information

Quantity required : 2
873034 - ROTOR

4
P2R reference P2R reference 70460
Maker reference Maker reference 873034

873034 - ROTOR

More information

Quantity required : 1
STARTER FREEWHEEL (6 HOLES) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300-350-400-500 -1A0093875-

5
P2R reference P2R reference 149153
Maker reference Maker reference 8494905

STARTER FREEWHEEL (6 HOLES) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300-350-400-500 -1A0093875-

More information

Quantity required : 1
877289 - VIS

6
P2R reference P2R reference 70656
Maker reference Maker reference 877289

877289 - VIS

More information

Quantity required : 6
479515 - RONDELLE

7
P2R reference P2R reference 66579
Maker reference Maker reference 479515

479515 - RONDELLE

More information

Quantity required : 6
NUT - FOR IGNITION ROTOR "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250-300 -82952R-

8
P2R reference P2R reference 68853
Maker reference Maker reference 82952R

NUT - FOR IGNITION ROTOR "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250-300 -82952R-

More information

Quantity required : 1
842385 - RONDELLE

9
P2R reference P2R reference 69229
Maker reference Maker reference 842385

842385 - RONDELLE

More information

Quantity required : 1
WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER -000097-

10
P2R reference P2R reference 63674
Maker reference Maker reference 000097

WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER -000097-

More information

Quantity required : 1
1A003111 - VIS M5X10

11
P2R reference P2R reference 109024
Maker reference Maker reference 1A003111

1A003111 - VIS M5X10

More information

Quantity required : 2
