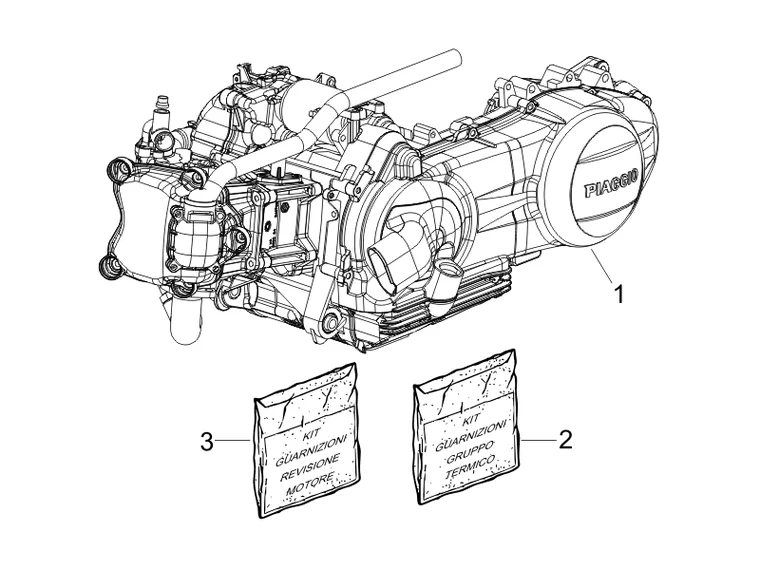

Vehicle Exploded View - GILERA NEXUS 300 ie E3 2008 GILERA

Moteur : 01.02 MOTEUR COMPLET
Moteur complet
Search
"PIAGGIO GENUINE ENGINE" GILERA 300 NEXUS 4 stroke/4 valves E3 -CM1583365-

1
P2R reference P2R reference 96134
Maker reference Maker reference CM1583365

"PIAGGIO GENUINE ENGINE" GILERA 300 NEXUS 4 STROKE/4 VALVES E3 -CM1583365-

More information

Quantity required : 1
GASKET SET FOR TOP ENGINE "PIAGGIO GENUINE PART" 250-300 MP3, X8, X9 EVO, X-EVO, VESPA GTS/GILERA 250-300 NEXUS -497545-

2
P2R reference P2R reference 66931
Maker reference Maker reference 497545

GASKET SET FOR TOP ENGINE "PIAGGIO GENUINE PART" 250-300 MP3, X8, X9 EVO, X-EVO, VESPA GTS/GILERA 250-300 NEXUS -497545-

More information

Quantity required : 1
COMPLETE ENGINE GASKET SET "PIAGGIO GENUINE PART" 250-300 MP3, X8, X9 EVO, X-EVO, VESPA GTS/GILERA 250-300 NEXUS -497592-

3
P2R reference P2R reference 66944
Maker reference Maker reference 497592

COMPLETE ENGINE GASKET SET "PIAGGIO GENUINE PART" 250-300 MP3, X8, X9 EVO, X-EVO, VESPA GTS/GILERA 250-300 NEXUS -497592-

More information

Quantity required : 1
