Vehicle Exploded View - GILERA NEXUS 300 ie E3 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

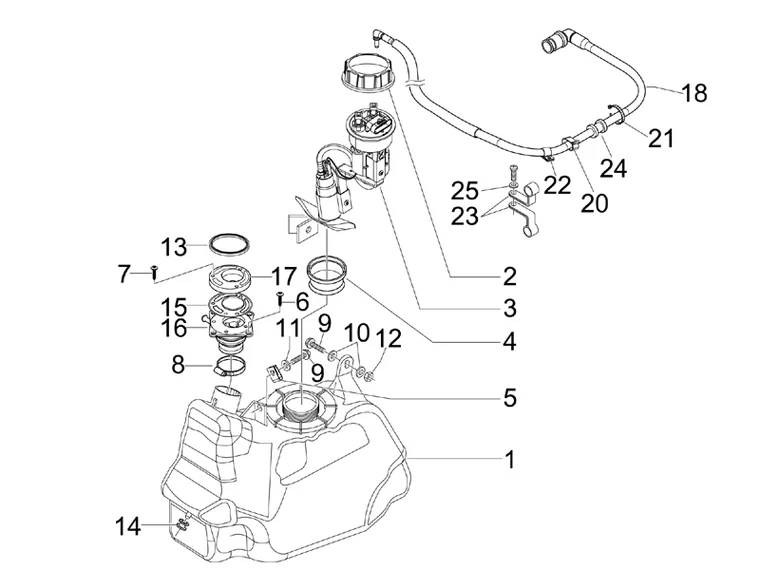

Châssis - parties plastiques - carrosseries : 02.47 RÉSERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/183/Nexus_300_ie_E3_2008-142.png)
1 |
975153 - RESERVOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/3/img/67133.JPG)
2 |
576546 - ECROU POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/5/img/67885.jpg)
3 |
ELECTRIC FUEL PUMP "PIAGGIO GENUINE PART" GILERA 125-300 NEXUS -640519- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/8/1/img/127181.jpg)
4 |
FUEL GAUGE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -656003- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
6 |
975805 - VIS More informationQuantity required : 4 |
||||||
|
7 |
975806 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/1/img/72871.JPG)
8 |
CM001910 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
9 |
018639 - VIS More informationQuantity required : 2 |
||||||
|
10 |
270216 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/4/img/65664.jpg)
11 |
078307 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/8/img/65818.jpg)
12 |
195482 - ECROU More informationQuantity required : 1 |
||||||
|
13 |
975519 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
14 |
SILENTBLOC FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1B000888- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/0/4/1/img/71041.jpg)
15 |
975608 - JOINT More informationQuantity required : 1 |
||||||
|
16 |
959465 - RACCORD More informationQuantity required : 1 |
||||||
|
16 |
975605 - RACCORD BOUCHON ESSENCE More informationQuantity required : 1 |
||||||
|
17 |
975151 - RACCORD More informationQuantity required : 1 |
||||||
|
18 |
624002 - TUYAU POUR CARBURATEUR More informationQuantity required : 1 |
||||||
|
20 |
CM006904 - OLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/7/img/72907.JPG)
21 |
CM006905 - RESSOT More informationQuantity required : 1 |
||||||
|
22 |
675510 - COLLIER More informationQuantity required : 1 |
||||||
|
23 |
273779 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
24 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/2/img/65342.JPG)
25 |
012528 - RONDELLE S01252800 More informationQuantity required : 1 |
