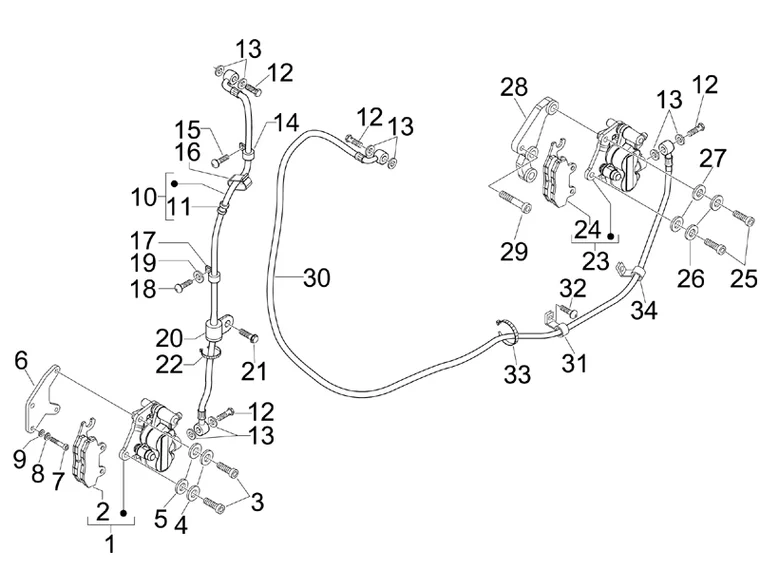

Vehicle Exploded View - GILERA NEXUS 300 ie E3 2008

	P2R reference	72980
	Maker reference	CM068301

FRONT BRAKE CALIPER "PIAGGIO GENUINE PART" 50-125 FLY 2005>, LIBERTY 2009>, VESPA PRIMAVERA 2013>, VESPA SPRIN 2014>, 125 X-EVO, VESPA GTS/GILERA 50 RUNNER, 125 NEXUS, SR-MAX (HENG-TONG SLX 12') -CM068301-

	P2R reference	68004
	Maker reference	647078

BRAKE PADS - "PIAGGIO GENUINE PART" 125 X-EVO FRONT, X8 FRONT, X9 FRONT, 125-300 VESPA GTS FRONT, 400 X-EVO FRONT+REAR, 125 FLY FRONT/GILERA 800 GP REAR/APRILIA 854 SRV REAR, 125-300 SR-MAX FRONT+REAR (PAIR) (HENG-TONG) -647078-

	P2R reference	66335
	Maker reference	319165

SCREW - MULTI PURPOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -319165-

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

	P2R reference	65422
	Maker reference	016604

016604 - RONDELLE S01660400

	P2R reference	68066
	Maker reference	649162

649162 - FLASQUE ROUE AVT

	P2R reference	68077
	Maker reference	649553

649553 - PLAQUE ETRIER

	P2R reference	68078
	Maker reference	649554

649554 - VIS

	P2R reference	65346
	Maker reference	012535

WASHER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -012535-

	P2R reference	63804
	Maker reference	006173

006173 - RONDELLE S00617300

	P2R reference	71049
	Maker reference	975693

975693 - CANALIS.

	P2R reference	66134
	Maker reference	274350

274350 - PASSE CABLE

	P2R reference	66050
	Maker reference	265451

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451-

	P2R reference	65723
	Maker reference	127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927-

	P2R reference	66329
	Maker reference	307166

307166 - COLLIER

	P2R reference	65446
	Maker reference	018629

018629 - VIS

	P2R reference	66307
	Maker reference	298729

298729 - COLLIER

	P2R reference	66081
	Maker reference	269273

269273 - COLLIER TUYAU

	P2R reference	65714
	Maker reference	122675

122675 - VIS

	P2R reference	63838
	Maker reference	006966

006966 - RONDELLE S00696600

	P2R reference	65960
	Maker reference	230636

230636 - PASSE-CABLE

	P2R reference	72723
	Maker reference	B016777

B016777 - VIS

	P2R reference	67081
	Maker reference	564836

564836 - COLLIER

	P2R reference	72981
	Maker reference	CM068304

REAR BRAKE CALIPER "PIAGGIO GENUINE PART" 300-400 MP3, 400 BEVERLY, X8, X-EVO/GILERA 500 NEXUS -CM068304-

	P2R reference	68004
	Maker reference	647078

BRAKE PADS - "PIAGGIO GENUINE PART" 125 X-EVO FRONT, X8 FRONT, X9 FRONT, 125-300 VESPA GTS FRONT, 400 X-EVO FRONT+REAR, 125 FLY FRONT/GILERA 800 GP REAR/APRILIA 854 SRV REAR, 125-300 SR-MAX FRONT+REAR (PAIR) (HENG-TONG) -647078-

	P2R reference	67371
	Maker reference	598921

SCREW - BRAKE CALIPER FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -598921-

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047-

	P2R reference	68798
	Maker reference	828961

WHEEL WASHER OR CALIPER WASHER "PIAGGIO GENUINE PART" 125-300-400 MP3, 125-250-300 VESPA GTS, BEVERLY, CARNABY/GILERA 125-250-300 NEXUS -828961-

	P2R reference	68066
	Maker reference	649162

649162 - FLASQUE ROUE AVT

	P2R reference	68038
	Maker reference	647799

647799 - VIS

	P2R reference	68036
	Maker reference	647695

647695 - CANALISATEUR

	P2R reference	65956
	Maker reference	229343

229343 - COLLIER

	P2R reference	66117
	Maker reference	272836

SCREW - (M6X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -272836

	P2R reference	66017
	Maker reference	257134

257134 - COLLIER

	P2R reference	67078
	Maker reference	564761

564761 - COLLIER
