Vehicle Exploded View - MOTO-GUZZI NEVADA 750 S 2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

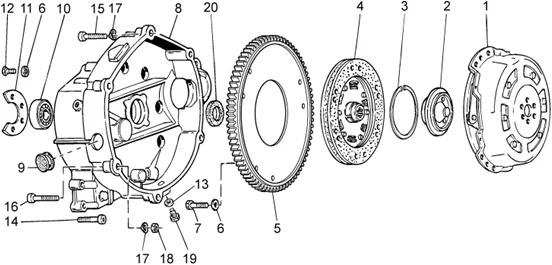

Moteur : 34.41 EMBRAGUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/500/Nevada_750_S_2010_34.41.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/3/9/1/img/131391.jpg)
1 |
CLUTCH "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA, STRADA, TARGA, -GU32080310- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/1/0/img/129510.jpg)
2 |
CLUTCH CUP "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, NEVADA, SP, STRADA -GU19083462- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/4/3/img/132143.jpg)
3 |
GU90272075 - ANNEAU ELASTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/3/9/2/img/131392.JPG)
4 |
CLUTCH DISC "PIAGGIO GENUINE PART" FOR MOTO-GUZZI 750 BREVA, NEVADA, V-7 -GU32084410- More informationQuantity required : 1 |
||||||
5 |
GU32067910 - COURONNE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
6 |
AP8152105 - RONDELLE More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/8/img/132928.jpg)
7 |
GU98084316 - VIS M6X16 More informationQuantity required : 6 |
||||||
|
8 |
981070 - CAMPANA FRIZIONE CPL NERA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/7/img/132577.jpg)
9 |
GU93180220 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/8/9/img/132389.jpg)
10 |
BEARING FOR CLUTCH CASE (25X52X15) "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, NEVADA, SP, STRADA -GU92201225- More informationQuantity required : 1 |
||||||
|
11 |
GU19203460 - PLAQUE FIXATION PALIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/7/img/132927.jpg)
12 |
GU98084314 - VIS M6X14 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/9/7/img/129097.jpg)
13 |
GASKET FOR DRAIN CAP "PIAGGIO GENUINE PART" POUR MOTO-GUZZI 850 CALIFORNIA 1985>, 1100 CALIFORNIA 1994>, 750 V7 2008>, NEVADA 2012>, V9 2016>, V11 2001>, V65 1982> -GU10528900- More informationQuantity required : 1 |
||||||
|
14 |
GU98682330 - VIS M6X30 More informationQuantity required : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/9/img/133159.jpg)
15 |
GU98680435 - VIS TCEI M8X35 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/6/2/img/133162.jpg)
16 |
GU98680450 - VIS M8X50 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
17 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 6 |
||||||
|
18 |
GU92606208 - ECROU M8X1,25 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
19 |
OIL DRAIN CAP/TRANSMISSION DRAIN CAP "PIAGGIO GENUINE PART" FOR ALL MOTO-GUZZI -GU31003766- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/6/0/img/70760.jpg)
20 |
GASKET RING "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, V7, NEVADA -886629- More informationQuantity required : 1 |
