Vehicle Exploded View - MOTO-GUZZI NEVADA 750 S 2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

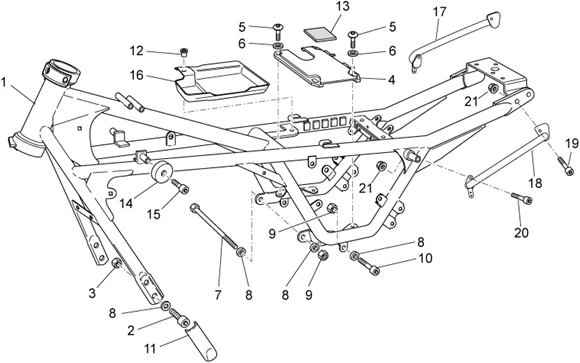

Chassis : 33.01 CHASSIS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/500/Nevada_750_S_2010_33.01.PNG)
1 |
897327 - (*)TELAIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/6/img/71836.jpg)
2 |
AP8150195 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/1/0/img/132510.JPG)
3 |
GU92630510 - ECROU M10X1,5 More informationQuantity required : 4 |
||||||
|
4 |
GU324182605 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/5/img/67255.jpg)
5 |
582428 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.JPG)
6 |
GU95008208 - RONDELLE 8,4X15X1,8 More informationQuantity required : 4 |
||||||
|
7 |
GU98110199 - PIVOT M10X205 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/2/img/132682.jpg)
8 |
GU95008210 - RONDELLE 10,2X18X2 More informationQuantity required : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/8/6/img/132486.jpg)
9 |
GU92606210 - ECROU M10X1,5 More informationQuantity required : 3 |
||||||
|
10 |
GU98680555 - VIS M10X55 More informationQuantity required : 2 |
||||||
|
11 |
GU32457810 - PROTECTION More informationQuantity required : 2 |
||||||
|
13 |
GU01103860 - SPUGNA More informationQuantity required : 1 |
||||||
|
14 |
AP8201124 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
15 |
GU98682414 - VIS M8X14 More informationQuantity required : 2 |
||||||
|
16 |
GU32479560 - PORTE-DOCUMENTS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/0/img/71400.jpg)
17 |
AP8120508 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
|
17 |
897402 - MANIGLIA PASSEGGERO DX COMPLETA More informationQuantity required : 1 |
||||||
|
18 |
897403 - MANIGLIA PASSEGGERO SX COMPLETA More informationQuantity required : 1 |
||||||
|
19 |
GU98680440 - VIS TCEI M8X40 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/5/img/66335.jpg)
20 |
SCREW - MULTI PURPOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -319165- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
21 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300- More informationQuantity required : 4 |
