Vehicle Exploded View - MOTO-GUZZI NEVADA 750 S 2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

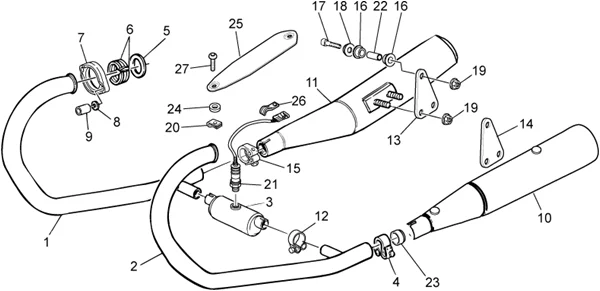

Chassis : 33.23 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/500/Nevada_750_S_2010_33.23.PNG)
1 |
978953 - TUBO DI SCARICO DX More informationQuantity required : 1 |
||||||
|
2 |
978954 - TUBO DI SCARICO SX More informationQuantity required : 1 |
||||||
|
3 |
978955 - CAMERA ESPANSIONE More informationQuantity required : 1 |
||||||
|
4 |
883294 - FASCETTA COLLETORE SCARICO SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/6/3/img/129463.jpg)
5 |
CYLINDER HEAD OUTLET GASKET "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, V7, NEVADA, STRADA, TARGA, V50, V65 -GU19025280- More informationQuantity required : 2 |
||||||
|
6 |
GU19025460 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
7 |
GU32121010 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
8 |
GU03013800 - ROS EL OND IX 6.4X12X0.5 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/7/6/img/131076.jpg)
9 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, NEVADA, V7 -GU31121880- More informationQuantity required : 4 |
||||||
|
10 |
884137 - SILENZIATORE SX More informationQuantity required : 1 |
||||||
|
11 |
884136 - SILENZIATORE DX More informationQuantity required : 1 |
||||||
|
12 |
978385 - FASCETTA SERR CAMERA ESP D 35 More informationQuantity required : 2 |
||||||
|
13 |
883297 - PIASTRA SUPP SILENZ DX More informationQuantity required : 1 |
||||||
|
14 |
883298 - PIASTRA SUPP SILENZ SX More informationQuantity required : 1 |
||||||
|
15 |
883293 - FASCETTA COLLETORE SCARICO DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/5/img/71745.JPG)
16 |
AP8144071 - CAOUTCHOUC POT More informationQuantity required : 4 |
||||||
|
17 |
GU98680440 - VIS TCEI M8X40 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/9/8/img/71698.jpg)
18 |
BUSH/WASHER FASTENING EXHAUST "PIAGGIO GENUINE PART" COMMON FOR MOTO-GUZZI RANGE -AP8134378- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/1/9/img/132519.JPG)
19 |
GU92640508 - ECROU More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
20 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
|
21 |
GU32727010 - SONDE LAMDA More informationQuantity required : 1 |
||||||
|
22 |
AP8121072 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/7/4/img/132274.jpg)
23 |
EXHAUST GASKET- "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, NEVADA, V7, 850 V9 -GU91113826- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/8/img/71418.JPG)
24 |
AP8120870 - RONDELLE ISOLANTE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/1/1/8/5/img/141185.jpg)
25 |
EXHAUST PROTECTION "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, 1100 CALIFORNIA -8837045- More informationQuantity required : 2 |
||||||
|
26 |
GU933011755 - CAVALIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/4/7/img/132947.JPG)
27 |
GU98210612 - VIS More informationQuantity required : 4 |
