Vehicle Exploded View - MOTO-GUZZI NEVADA 750 S 2010
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

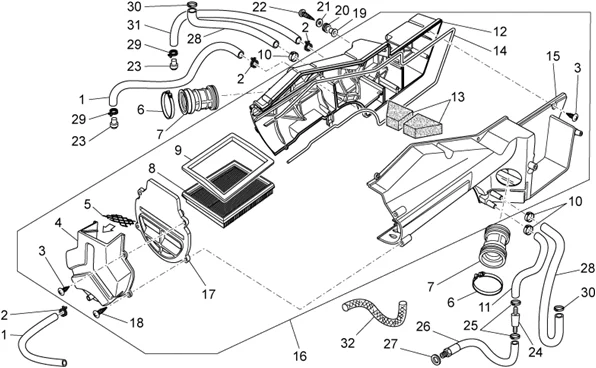

Chassis : 33.22 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/500/Nevada_750_S_2010_33.22.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
1 |
FUEL HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -896544- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/0/img/72130.jpg)
2 |
AP8201358 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 12 |
||||||
4 |
GU32116910 - COUVERCLE FILTRE More informationQuantity required : 1 |
||||||
|
5 |
GU32113510 - GRILLE CORPS FILTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/1/5/img/132615.jpg)
6 |
GU93305061 - COLLIER 61/65,5 More informationQuantity required : 2 |
||||||
|
7 |
GU32114410 - DURITE D'ADMISSION More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/2/0/img/71220.jpg)
8 |
AIR FILTER"PIAGGIO GENUINE PART" MOTO-GUZZI 750 V-7 2008>, BREVA 2003>2009, NEVADA 2004>/APRILIA 500 ATLANTIC 2001>2004, 500 SCARABEO 2003>2006 -AP8104242- More informationQuantity required : 1 |
||||||
|
9 |
GU32114110 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/9/img/71199.jpg)
10 |
AP8102766 - COLLIER More informationQuantity required : 3 |
||||||
|
11 |
AP8120772 - TUYAU RENIFLARD HUILE More informationQuantity required : 1 |
||||||
|
12 |
GU32114011 - DEMI-COUSSINET More informationQuantity required : 1 |
||||||
|
13 |
AP8104525 - FILTRE BLOW-BY More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/8/img/71408.jpg)
14 |
AP8120615 - JOINT More informationQuantity required : 3 |
||||||
|
15 |
883697 - SEMIGUSCIO SINISTRO More informationQuantity required : 1 |
||||||
|
16 |
883696 - SCATOLA FILTRO COMPL. More informationQuantity required : 1 |
||||||
|
17 |
GU32113410 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
18 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 3 |
||||||
|
19 |
GU30576100 - ENTRETOISE More informationQuantity required : 3 |
||||||
|
20 |
GU91551010 - CAOUTCHOUC More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/0/3/img/132703.jpg)
21 |
GU95100059 - RONDELLE 5,25X14X1,5 More informationQuantity required : 3 |
||||||
|
22 |
AP8152329 - VIS SWP CROIS. BRID. More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/9/img/71419.JPG)
23 |
AP8120876 - BOUCHON DE FERMETURE More informationQuantity required : 2 |
||||||
|
24 |
AP8104251 - SOUPAPE DE RETENUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/9/img/71169.jpg)
25 |
AP8102159 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/4/5/5/img/131455.jpg)
26 |
GU32159310 - RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/5/6/img/132256.jpg)
27 |
GU90714082 - JOINT More informationQuantity required : 1 |
||||||
|
28 |
GU32159610 - TUYAU RENIFLARD RADIATEUR More informationQuantity required : 2 |
||||||
|
29 |
GU61108500 - COLLIER D9 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/1/img/71171.jpg)
30 |
AP8102239 - COLLIER CLIC More informationQuantity required : 2 |
||||||
|
31 |
AP8144038 - TUYAU ESSENCE 6X10 More informationQuantity required : 1 |
||||||
|
32 |
GU00823923140 - GUAINA NERA D16 S0,4 VETR More informationQuantity required : 1 |
