Vehicle Exploded View - APRILIA MOJITO 125 E3 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

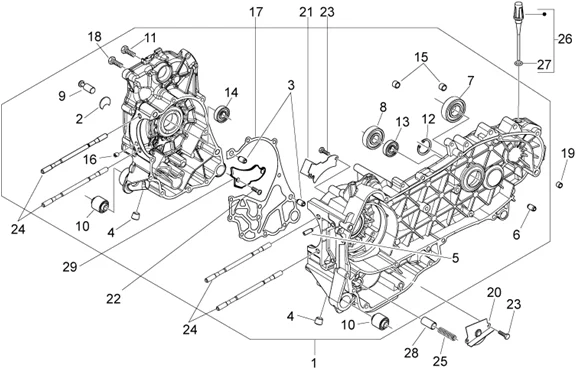

Moteur : 29.33 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/255/Mojito_125_E3_2008_29.33.PNG)
1 |
COMPLETE CRANKCASE "PIAGGIO GENUINE PART" 125 MP3, X8, X-EVO, X9, FLY, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC (CLASSE-1 DIA 32,959/32,965 MM) -CM1485205001- More informationQuantity required : 1 |
||||||
|
1 |
COMPLETE CRANKCASE "PIAGGIO GENUINE PART" 125 MP3, X8, X-EVO, X9, FLY, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC (CLASSE-2 DIA 32,959/32,959 MM) -CM1485205002- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/4/9/img/69149.jpg)
2 |
840489 - DEFLECTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
3 |
CRANKCASE PIN Ø9,5 "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -B015956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/7/3/img/72673.jpg)
4 |
B015433 - PLUG VISSES More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/4/img/66654.jpg)
5 |
484034 - GICLEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
6 |
BRONZE RING Ø12XØ8X8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/MAXISCOOTER -431860- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/9/img/68899.jpg)
7 |
BEARING (15.42.13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -83018R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/8/2/img/69082.jpg)
8 |
BEARING FOR TRANSMISSION REDUCER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTEUR -833701 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/4/3/img/66643.jpg)
9 |
483785 - PIVOT RESSORT DE BEQUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/4/img/66704.jpg)
10 |
SILENBLOC FOR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER ET MAXISCOOTER -486081 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/5/img/72705.jpg)
11 |
B016425 - VIS BRIDE More informationQuantity required : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/9/img/72699.jpg)
12 |
CIRCLIPS (25X26,9X1,2) "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -B015959 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/5/img/68775.jpg)
13 |
GASKET FOR DRIVING SHAFT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250-300 -82878R - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/0/5/img/68805.jpg)
14 |
SEAL RING GASKET- FOR CRANKSHAFT(IGNITION SIDE) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -82898R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
15 |
CENTERING PIN (11X10) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -B015957 More informationQuantity required : 2 |
||||||
|
16 |
844582 - GICLEUR CARTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/1/img/68851.jpg)
17 |
GASKET FOR ENGINE CRANKCASE "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, X8 STREET, VESPA LX, VESPA-S/APRILIA 125 SR, SPORT-CITY, MOJITO -829526 More informationQuantity required : 1 |
||||||
|
18 |
B016425 - VIS BRIDE More informationQuantity required : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
19 |
CENTERING PIN (7,5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -277916- More informationQuantity required : 1 |
||||||
|
20 |
483767 - PANNEAU INF!RIEURE More informationQuantity required : 1 |
||||||
|
21 |
485047 - PANNEAU SUP!RIEURE More informationQuantity required : 1 |
||||||
|
22 |
1A003111 - VIS M5X10 More informationQuantity required : 1 |
||||||
|
22 |
1A003111 - VIS M5X10 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
23 |
830061 - VIS More informationQuantity required : 4 |
||||||
|
24 |
411295 - GOUJON More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/6/img/66686.jpg)
25 |
485655 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/9/1/img/68991.jpg)
26 |
OIL LEVEL GAUGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER ET MAXISCOOTER -832130- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/4/3/img/68643.jpg)
27 |
827085 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/4/img/68864.jpg)
28 |
829661 - VOLET HUILE More informationQuantity required : 1 |
||||||
|
29 |
828766 - PLAQUETTE More informationQuantity required : 1 |
