Vehicle Exploded View - APRILIA MOJITO 125 E3 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

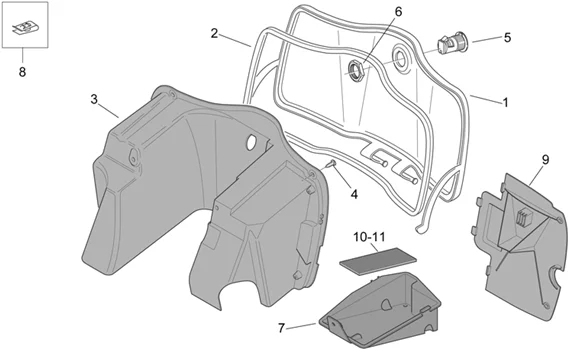

Chassis : 28.07 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/255/Mojito_125_E3_2008_28.07.PNG)
1 |
86022300AF - ABATTANT PORTE-OBJETS BLEU More informationQuantity required : 1 |
||||||
|
1 |
86022300XB3 - ABATTANT PORTE-OBJETS BLANC More informationQuantity required : 1 |
||||||
|
1 |
86022300XN5 - ABATT. PORTE-OBJETS NOIR More informationQuantity required : 1 |
||||||
|
2 |
AP8220407 - JOINT COFFRE NOIR 7X8 More informationQuantity required : 1 |
||||||
|
3 |
AP8158327 - SCATOLA PORTAOGGETTI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
4 |
SCREW - FOR FAIRINGS FASTENING (STAINLESS) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTORBIKE -AP8150413- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/3/img/71233.jpg)
5 |
GLOVE BOX LOCK "PIAGGIO GENUINE PART" 50 GULLIVER, MOJITO, 125-250 ATLANTIC, SPORT-CITY -AP8104612- More informationQuantity required : 1 |
||||||
|
6 |
AP8102523 - ECROU SERRURE More informationQuantity required : 1 |
||||||
|
7 |
AP8158328 - SUPPORTO BATTERIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
8 |
AP8201763 - CLIP POUR VIS TARAUD More informationQuantity required : 1 |
||||||
|
9 |
AP8249788 - CHIUSURA SCATOLA BATTERIA More informationQuantity required : 1 |
||||||
|
10 |
AP8117040 - More informationQuantity required : 1 |
||||||
|
11 |
AP8117073 - ADHESIVE SPONGE More informationQuantity required : 1 |
